Fusion FWD L4-2.3L VIN Z (2007)
![background image](/ford/fusion_fwd/l4-2.3l_vin_z/Page-2536002.png)
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the screw and the fender splash shield access cover.

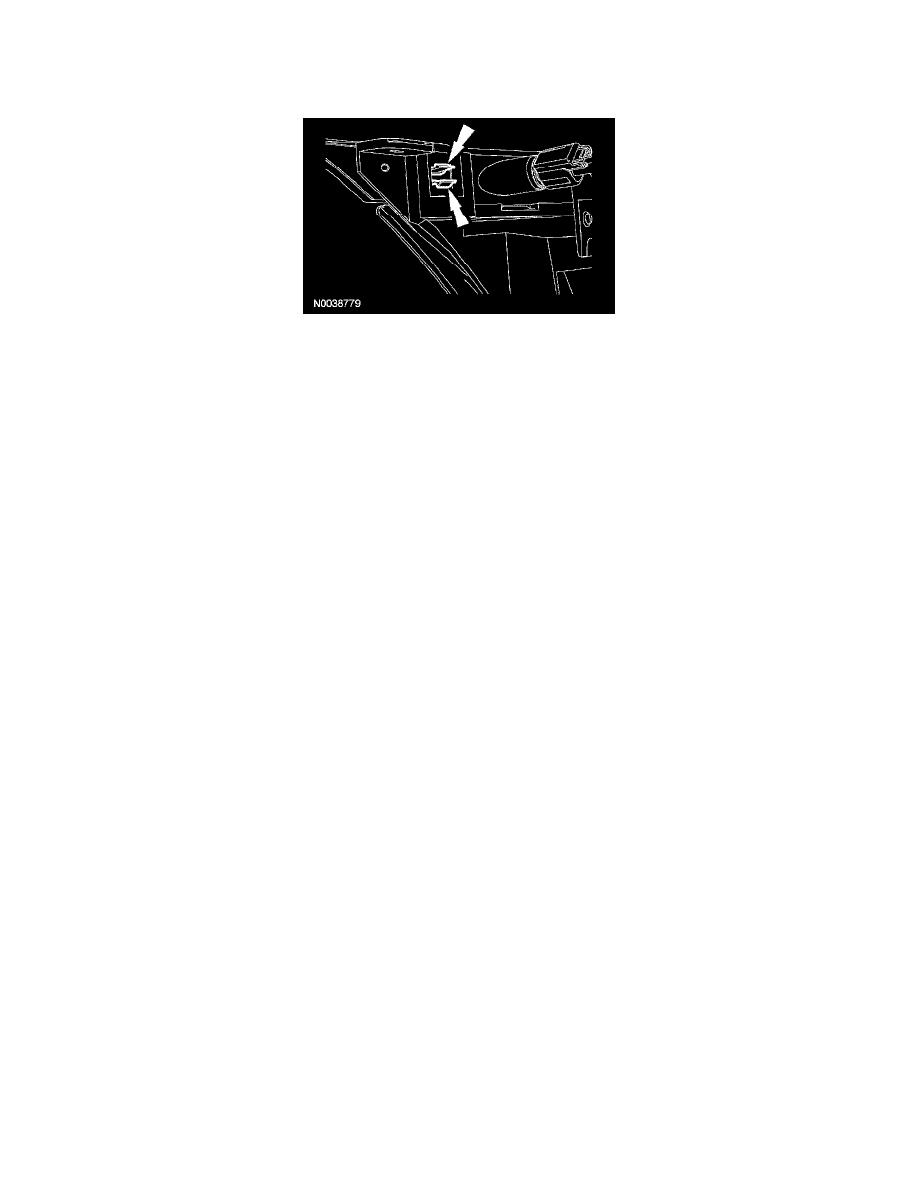

3. Release the tabs and remove the side marker lamp.
-
Disconnect the electrical connector.
4. To install, reverse the removal procedure.
