Fusion FWD L4-2.3L VIN Z (2007)

Page 2
background image

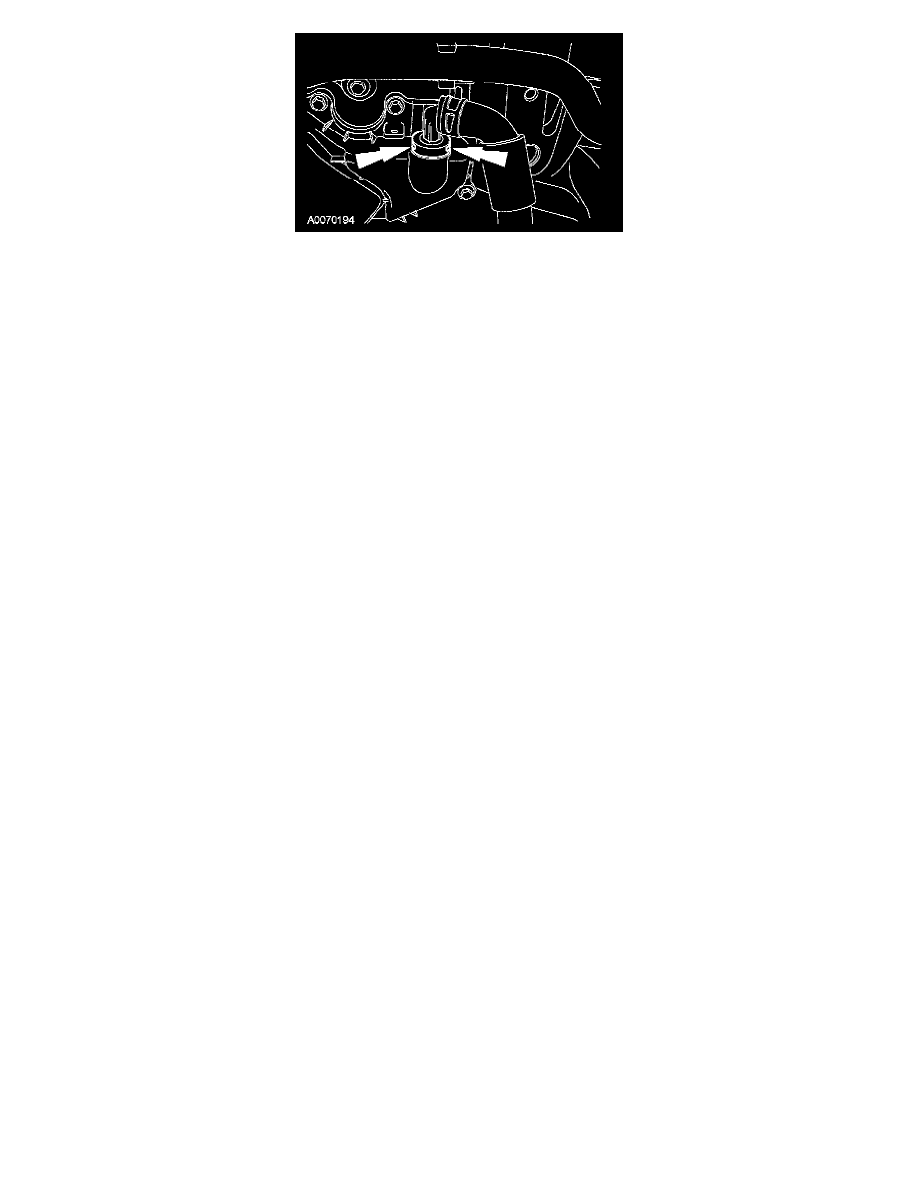

3. Disengage the 2 tabs and remove the positive crankcase ventilation (PCV) valve from the oil separator.
4. Release the clamp and remove the PCV valve vacuum tube.
5. To install, reverse the removal procedure.
