Fusion FWD L4-2.3L VIN Z (2007)
14. Remove the I/P end panel.

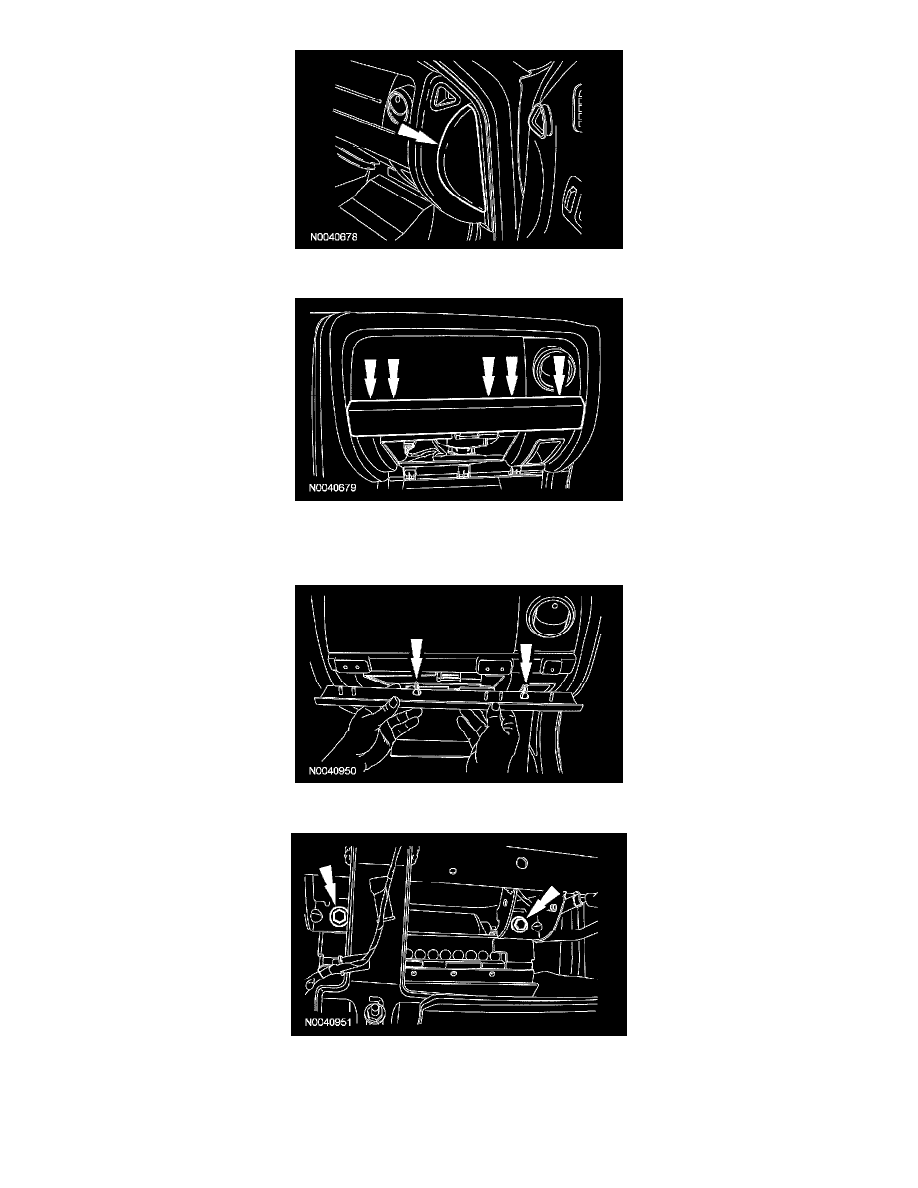

15. NOTE: Illustration shows the location of the 5 RH I/P trim panel nuts located inside of the I/P.
Through the glove compartment opening and the side of the I/P, remove the 5 RH I/P trim panel nuts on the inside of the I/P.
16. Pull out releasing the 2 retaining clips and remove the RH I/P trim panel.
17. Through the glove compartment opening, remove the 2 passenger air bag module bolts.
18. CAUTION: Do not handle the passenger air bag module by grabbing the edges of the deployment door.
Through the glove compartment opening, release the deployment door clips from the I/P and then remove the passenger air bag module from the
