Fusion FWD L4-2.3L VIN Z (2007)

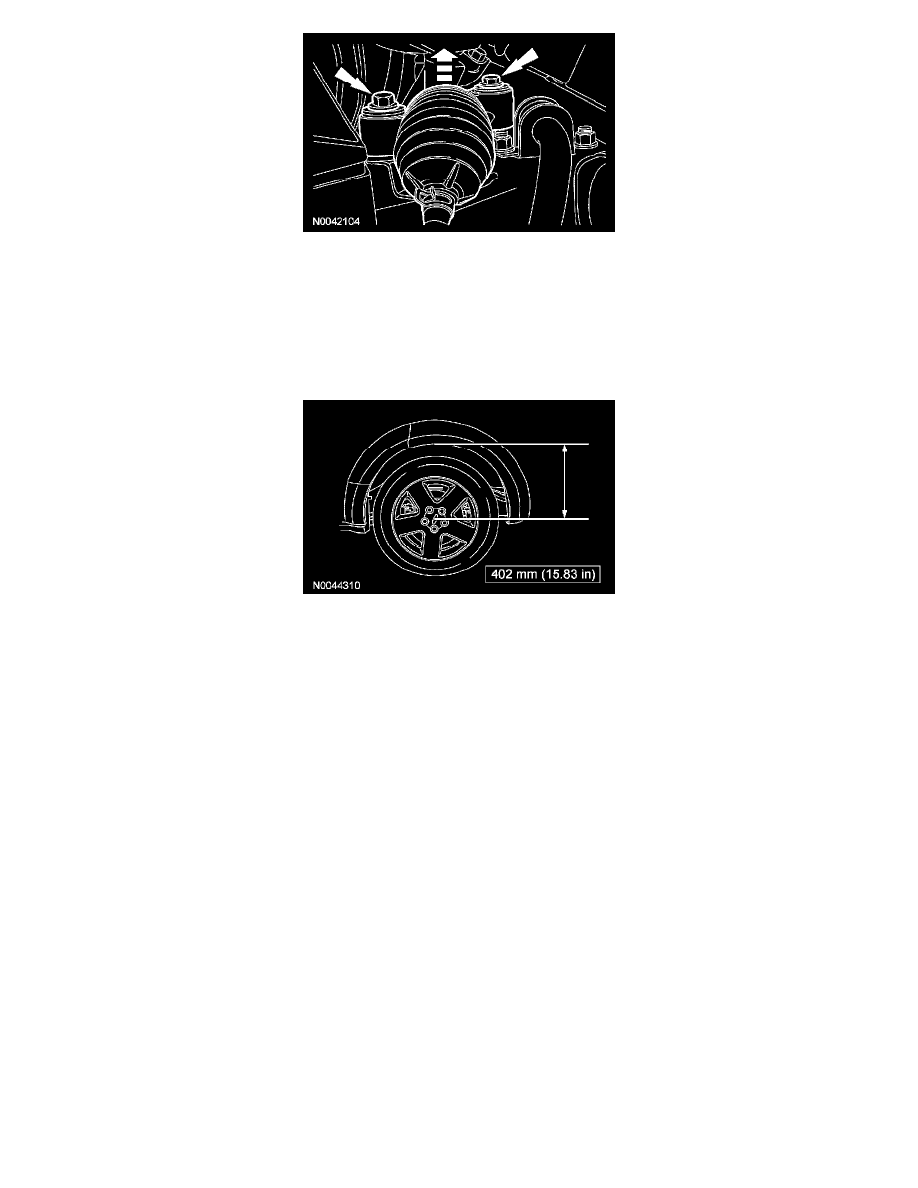

16. Remove and discard the 4 stabilizer bar bracket nuts and remove the 2 stabilizer bar brackets.
-
To install, tighten the bracket nuts to 48 Nm (35 ft. lbs.).
17. Remove the 2 stabilizer bar bushings.
18. CAUTION: Before tightening the stabilizer bar bracket nuts, the suspension must be at the bushing fastener tightening position. Use a suitable
jack to raise the suspension until the distance between the center of the hub and the lip of the fender is equal to 402 mm (15.83 inch).
To install, reverse the removal procedure.
