Fusion FWD L4-2.3L VIN Z (2007)

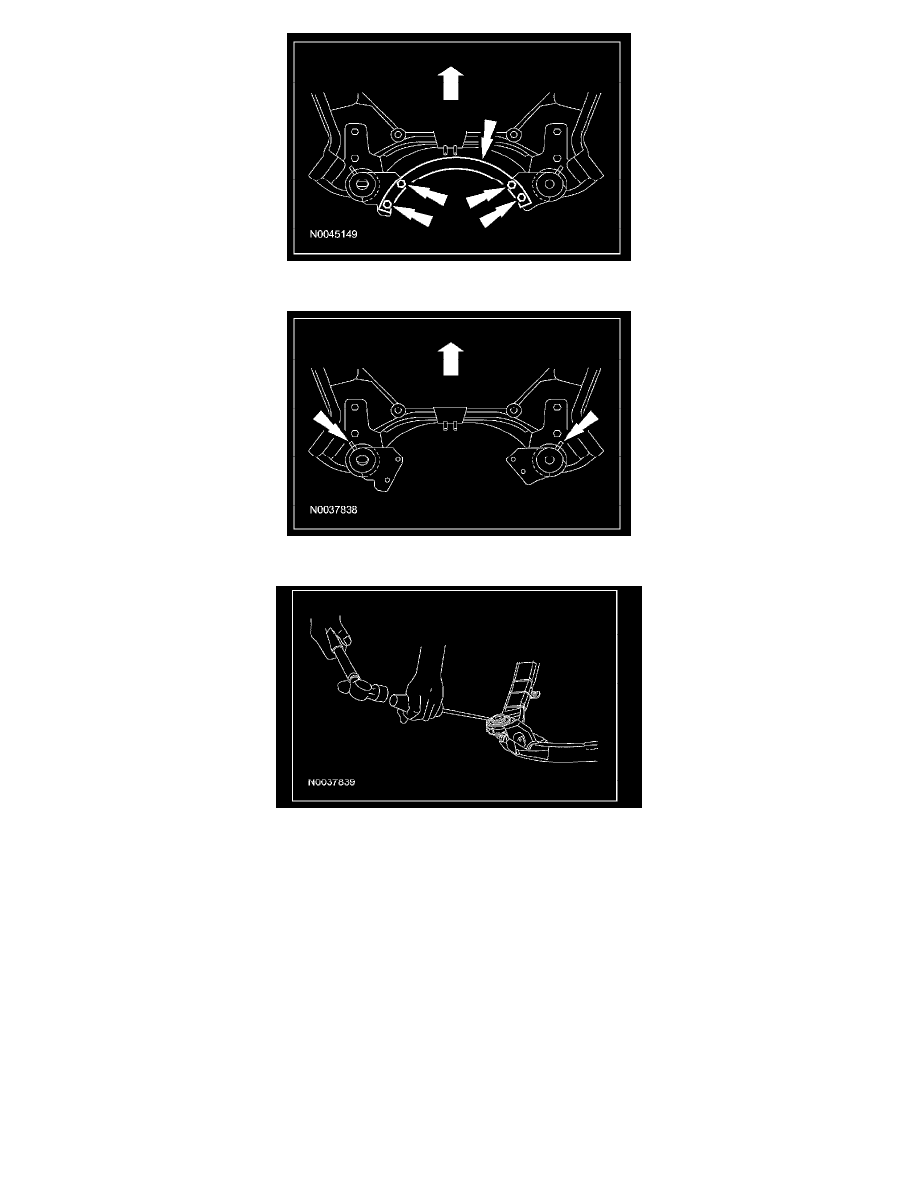

8. Mark the orientation of the bushings to the subframe.
9. Remove the lower rear bushings using a flat-blade screwdriver, being careful not to damage the subframe.
10. Turn the subframe over.
11. Remove the upper rear bushings using a flat-blade screwdriver, being careful not to damage the subframe.
Installation
Front bushings
1. NOTE: The bushings must be installed with the correct orientation or increased noise and vibration may occur.
Assemble the special tools to the front subframe with the new front bushings. The upper and lower bushings are installed at the same time.
