Fusion FWD L4-2.3L VIN Z (2007)

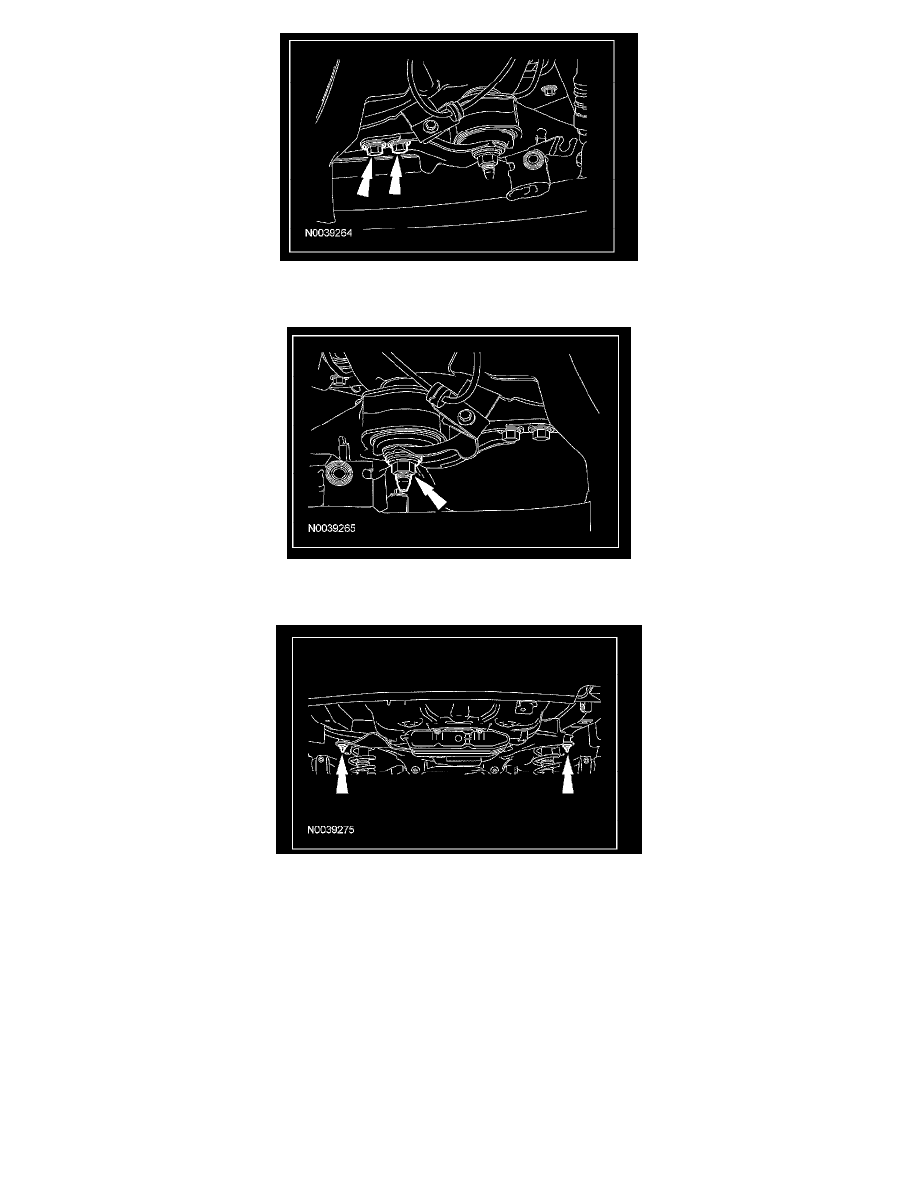

16. Remove the 2 front (1 each side) mounting nuts and washers.
-
To install, tighten to 115 Nm (85 lb-ft).
17. Remove the 2 rear mounting nuts.
-
To install, tighten to 115 Nm (85 lb-ft).
18. Remove the rear subframe.
19. Transfer the components as necessary.
20. NOTE: Make sure the vehicle is at the correct vehicle ride height.
To install, reverse the removal procedure.
