Fusion FWD L4-2.3L VIN Z (2007)
![background image](/ford/fusion_fwd/l4-2.3l_vin_z/Page-1330003.png)

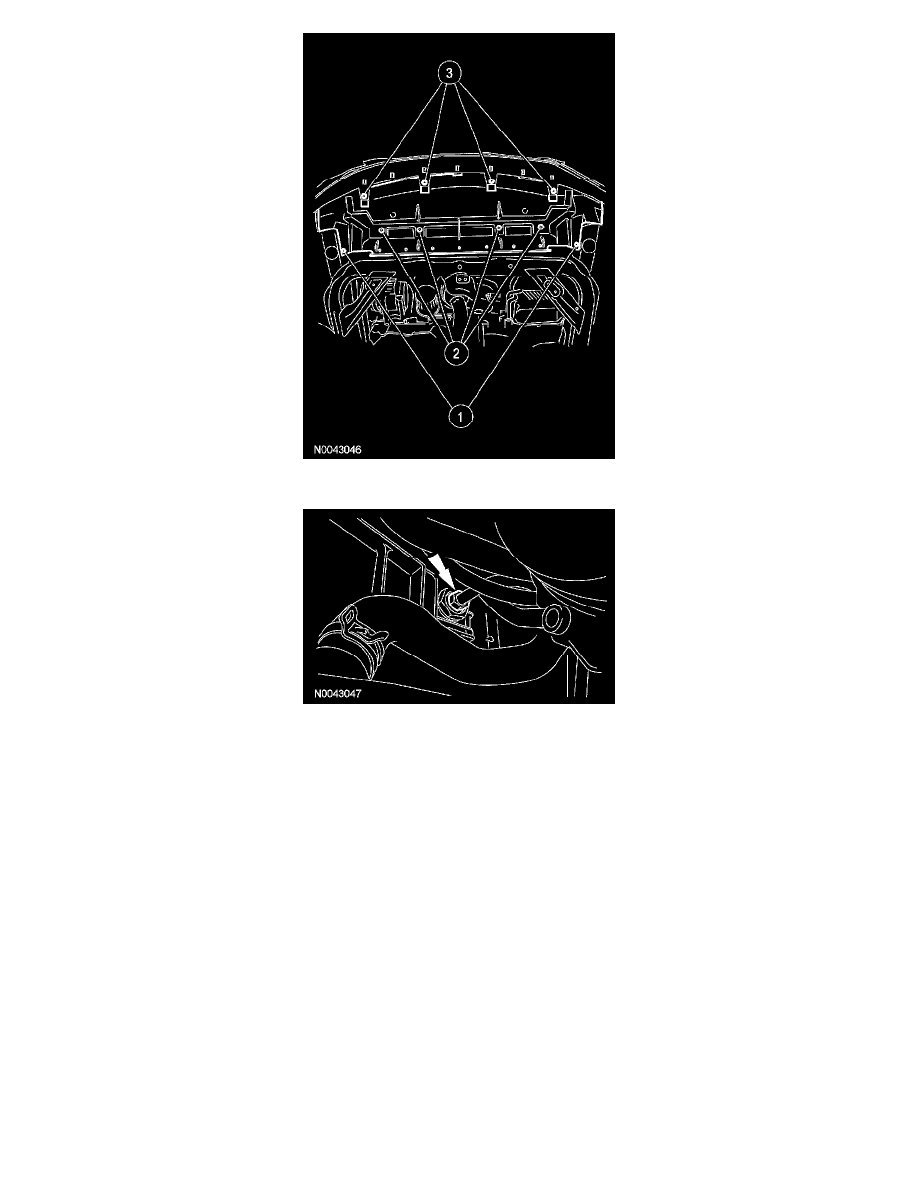

5. Disconnect the lower transmission fluid cooler tube from the radiator.
6. CAUTION: Use care not to over stretch or extend the hose clamps.
CAUTION: The hose clamps are held on the hose with a special epoxy. Damage may occur to the hose if the clamp is removed from the
hose. If the clamp or hose is damaged, install a new fluid cooler tube.
Disconnect the transmission fluid cooler hoses from the transmission.
