Fusion FWD L4-2.3L VIN Z (2007)
![background image](/ford/fusion_fwd/l4-2.3l_vin_z/Page-1330005.png)

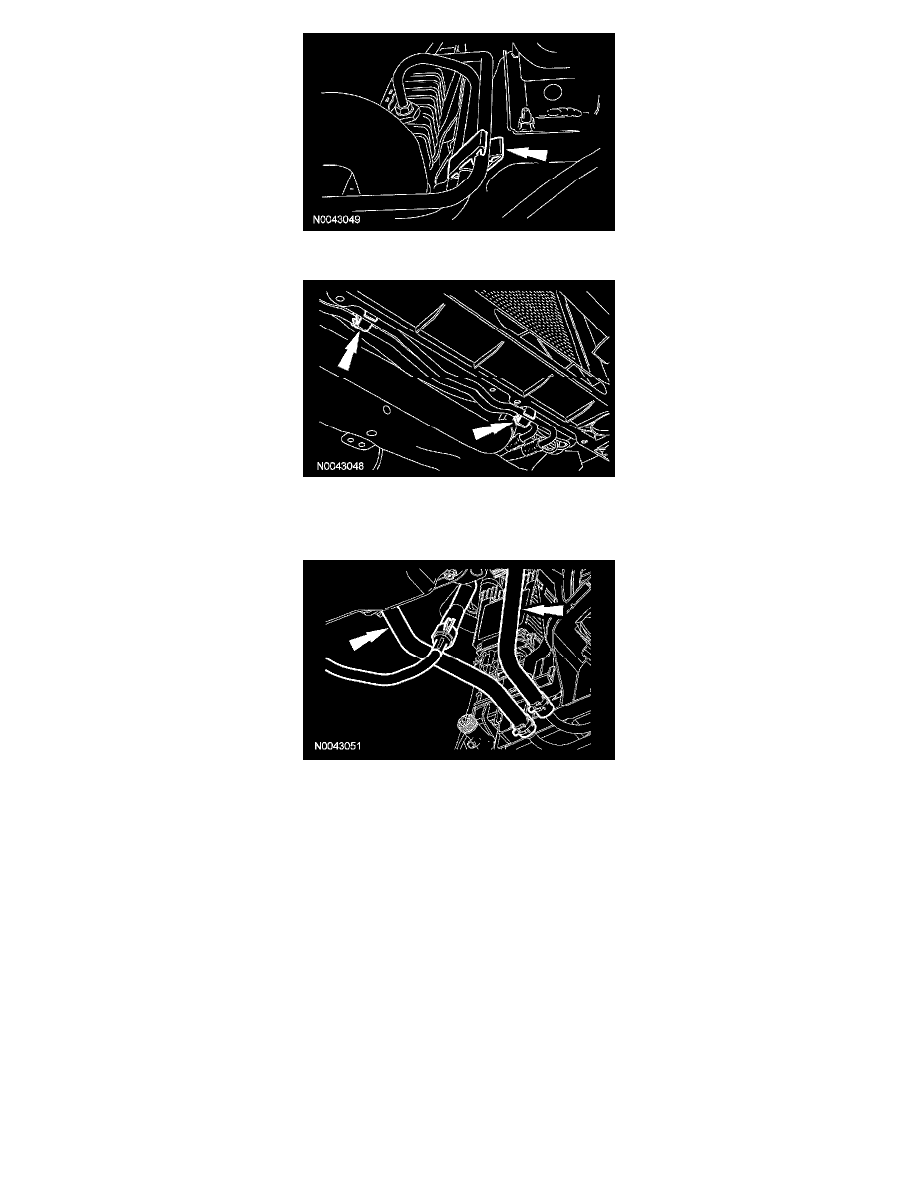

2. Install the transmission fluid cooler tubes in the retainers.
3. NOTE: The power steering hose is routed between the 2 transmission fluid cooler hoses.
Position the transmission fluid cooler hoses in place.
4. CAUTION: Use care not to over stretch or extend the hose clamps.
CAUTION: The hose clamps are held on the hose with a special epoxy. Damage may occur to the hose if the clamp is removed from the
hose. If the clamp or hose is damaged, install a new fluid cooler tube.
Connect the transmission fluid cooler hoses to the transaxle.
