Fusion FWD L4-2.3L VIN Z (2007)

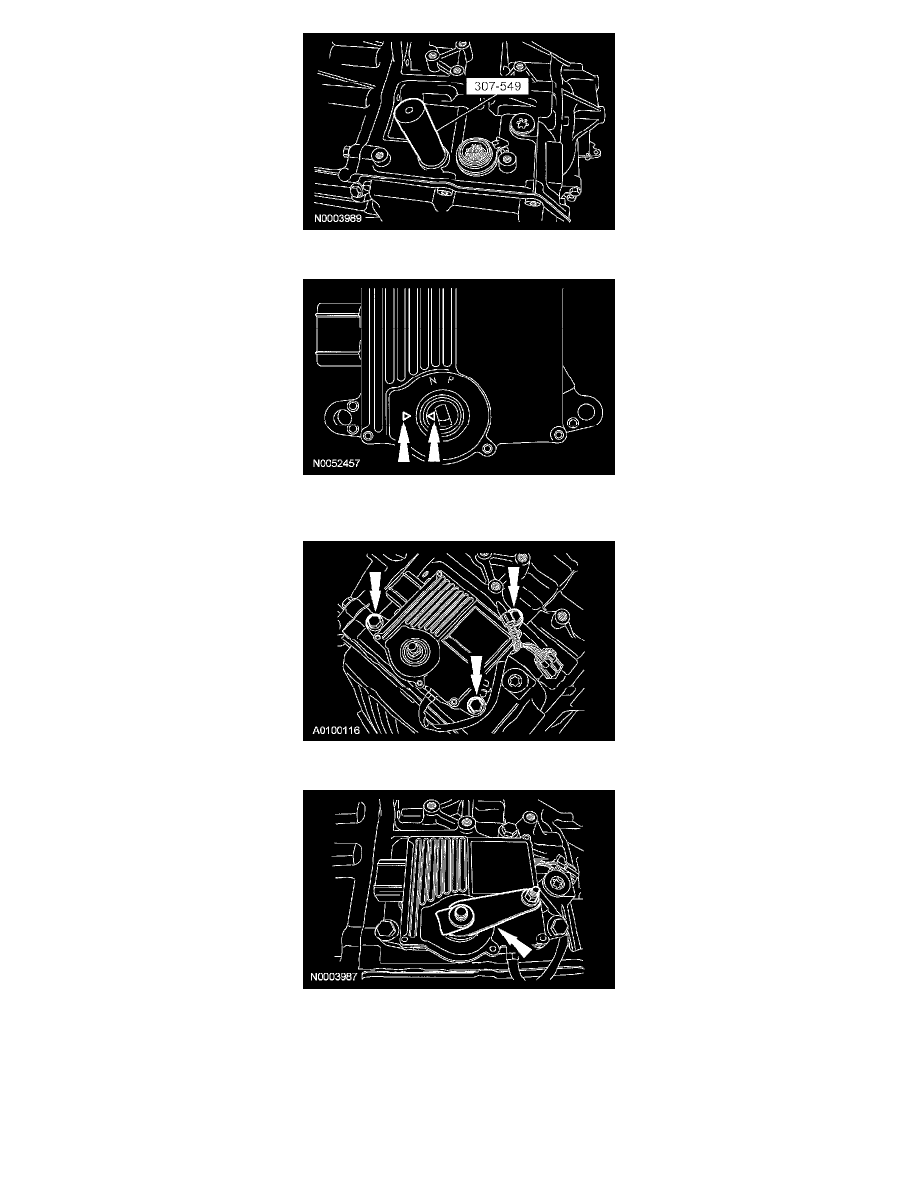

2. Verify that the manual lever position markings are aligned. Markings should indicate that the manual lever is in the OVERDRIVE position.
3. Install the TCM.
-
Tighten to 24 Nm (18 ft. lbs.).
4. Install the manual control lever.
5. Install the manual control lever nut.
-
Tighten to 12 Nm (9 ft. lbs.).
