Fusion FWD L4-2.3L VIN Z (2007)
3. Install the LH halfshaft.
Halfshaft Seal - RH
Halfshaft Seal - RH

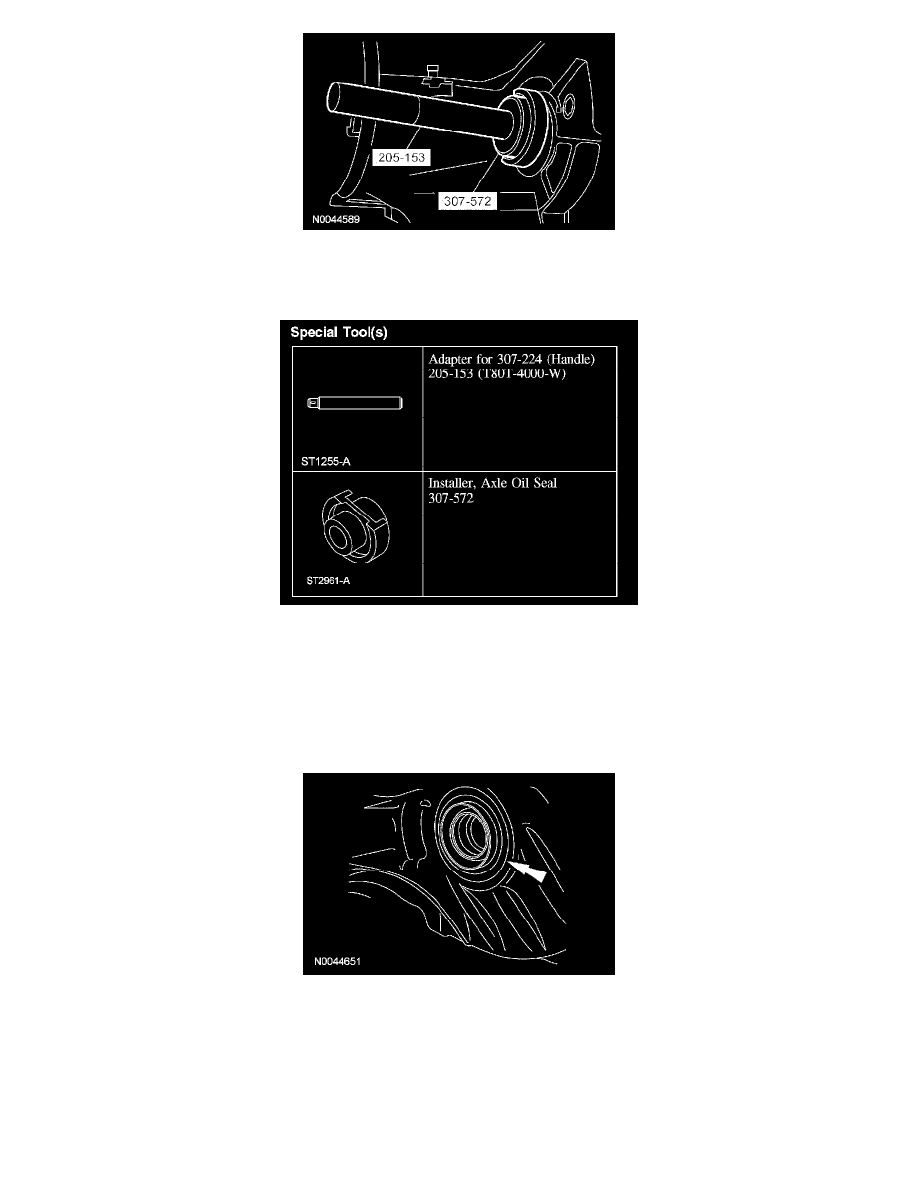

Special Tools
Removal
1. Remove the RH halfshaft.
2. CAUTION: Be careful not to damage the case while removing the seal.
Using a suitable tool, remove the RH differential fluid seal.
Installation
1. Position the new differential fluid seal on the special tools.
