Fusion FWD L4-2.3L VIN Z (2007)

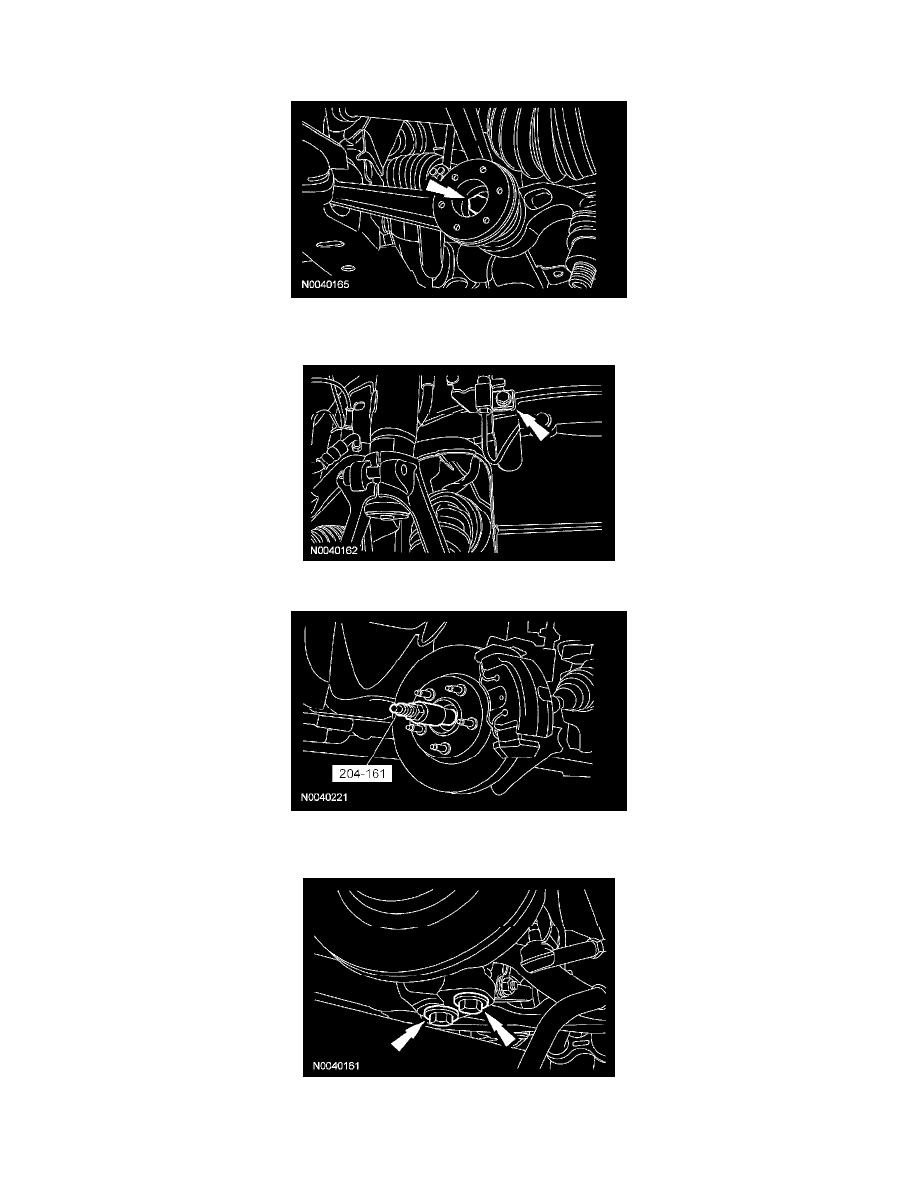

7. Install the damper fork bolt connecting the damper fork to the lower control arm.
-
Tighten to 109 Nm (80 ft. lbs.).
8. Install the brake caliper hose bolt.
-
Tighten to 22 Nm (16 ft. lbs.).
9. Using the special tool, install the halfshaft in the wheel hub.
10. Install the front and rear lower control arm nuts.
-
Tighten to 200 Nm (148 ft. lbs.).
11. CAUTION: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the
vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.
