Fusion FWD L4-2.3L VIN Z (2007)
Flywheel: Specifications
Flywheel

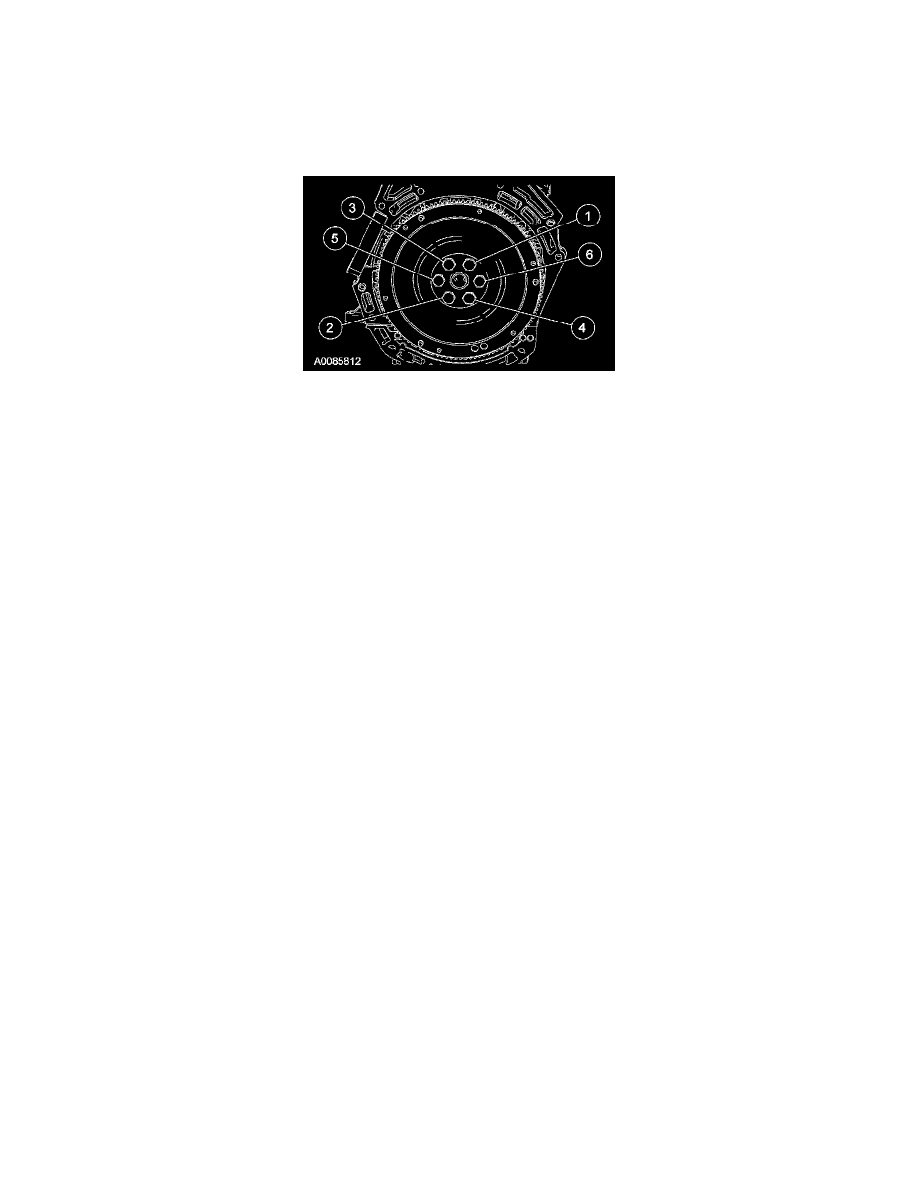

Install the flywheel and the 6 bolts. Tighten the 6 bolts in the sequence shown in 3 stages:
^
Stage 1: Tighten to ........................................................................................................................................................................ 50 Nm (37 ft. lbs.).
^
Stage 2: Tighten to ........................................................................................................................................................................ 80 Nm (59 ft. lbs.).
^
Stage 3: Tighten to ...................................................................................................................................................................... 112 Nm (83 ft. lbs.).
