Fusion FWD L4-2.3L VIN Z (2007)
Transmission Mount: Service and Repair
Transaxle Rear Support Insulator

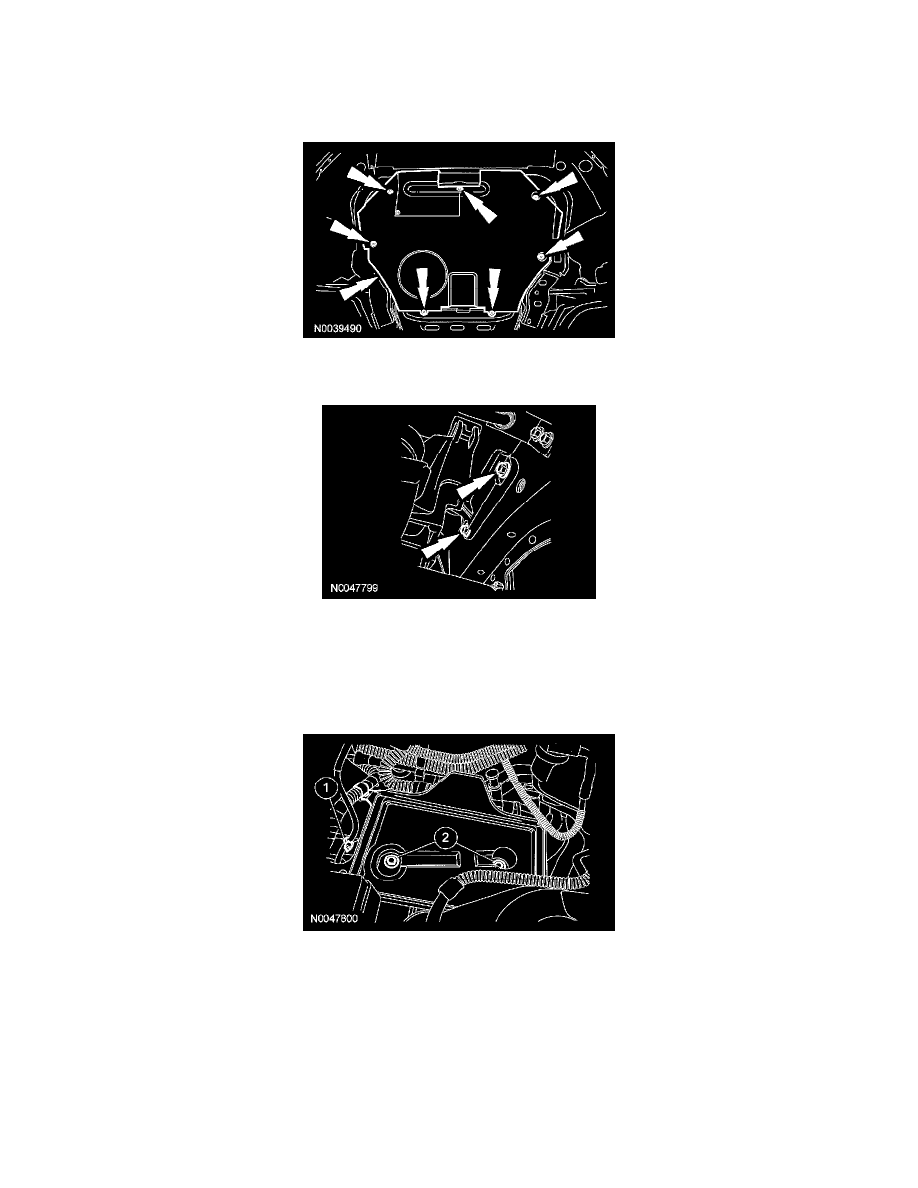

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the 7 splash shield bolts and the splash shield.
-
To install, tighten to 47 Nm (35 ft. lbs.).
3. Remove the 2 lower transaxle rear support insulator bolts.
-
To install, tighten to 63 Nm (46 ft. lbs.).
4. Lower the vehicle.
5. Remove the battery.
6. Remove the battery tray.
1. Disconnect the positive battery cable retainer.
2. Remove the battery tray nut and bolt.
-
Tighten to 9 Nm (80 inch lbs.).
7. Position the power distribution box aside.
1. Remove the 2 power distribution box bolts and the nut. Pull the power distribution box upward to unclip the pushpin.
2. Disconnect the 2 electrical connectors.
