Fusion FWD L4-2.3L VIN Z (2007)
Wiper Motor: Service and Repair
WIPER MOTOR
Removal and Installation
1. Remove the wiper pivot arms.
2. Remove the windshield wiper mounting arm and pivot shaft.

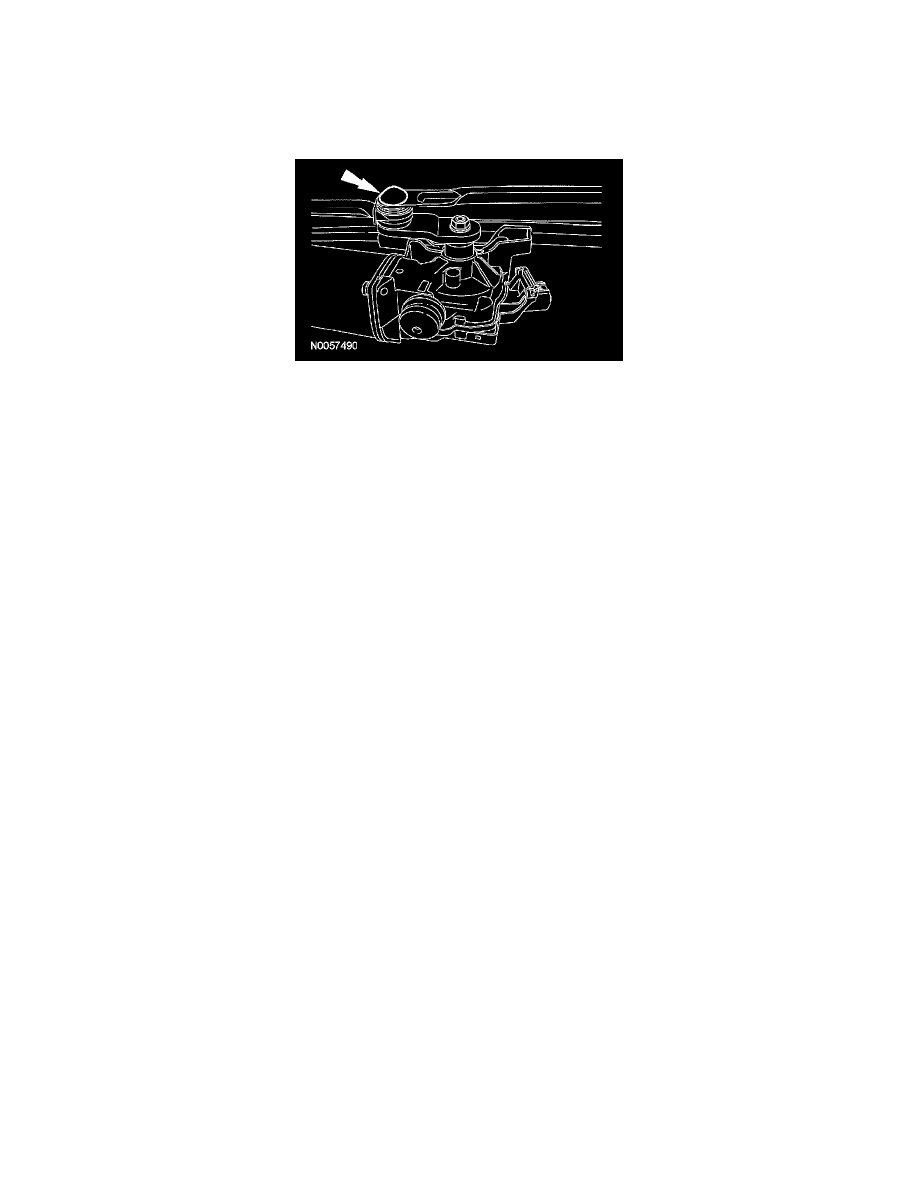

3. Remove the 2 drive rods from the motor crank arm ball joint.
4. Remove the wiper motor-to-wiper mounting arm bolts and the wiper motor.
-
To install, tighten to 8 Nm (71 lb-in).
5. To install, reverse the removal procedure.
