Mustang V6-4.0L (2008)
Evaporative Emission Control Canister: Service and Repair

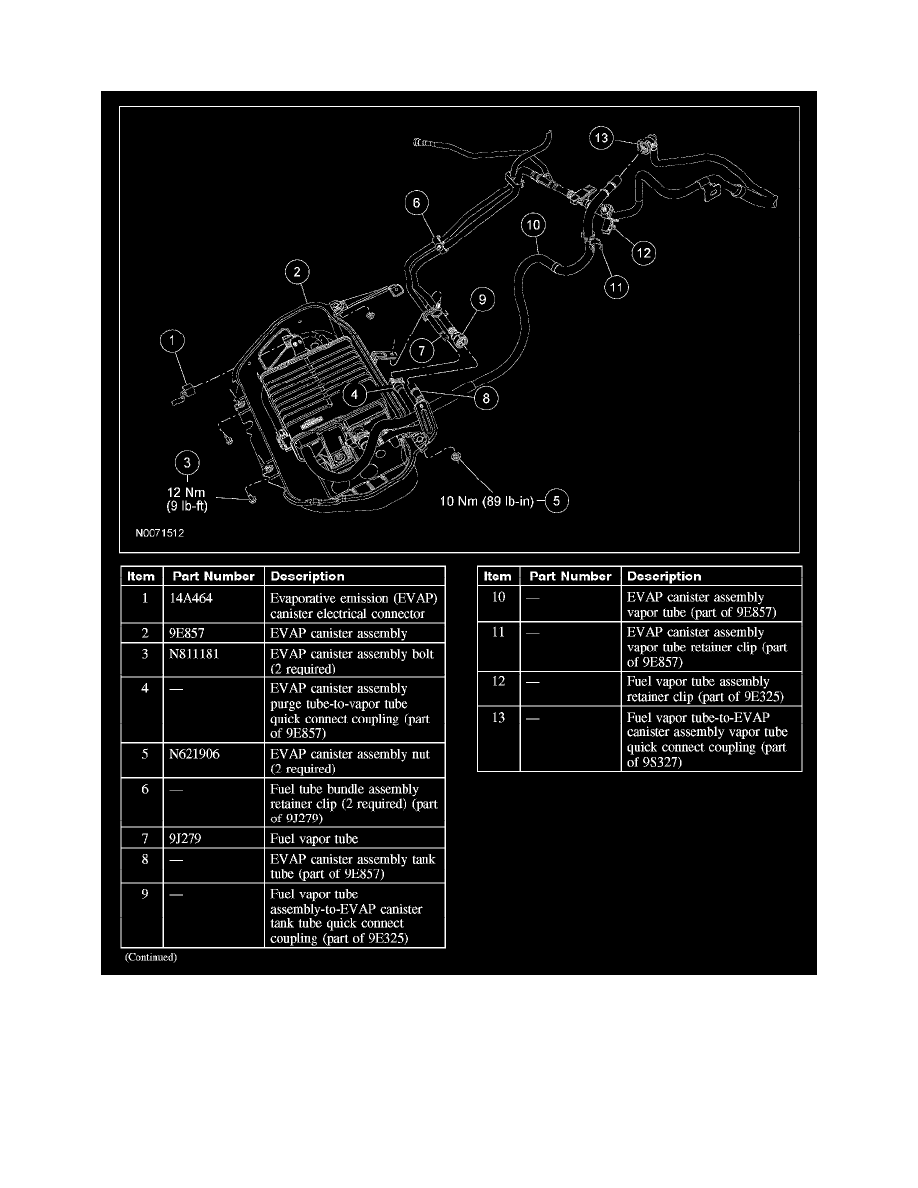

EVAPORATIVE EMISSION CANISTER
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. NOTE: Clean the evaporative emission (EVAP) canister electrical connector and the immediate surrounding area of any dirt or foreign material.
Disconnect the EVAP canister electrical connector.
3. Release the 2 fuel tube bundle assembly retainer clips from the EVAP canister assembly.
4. Disconnect the fuel vapor tube assembly-to-EVAP canister tank tube quick connect coupling.
