Mustang V6-4.0L (2008)
Evaporative Emissions Hose: Service and Repair

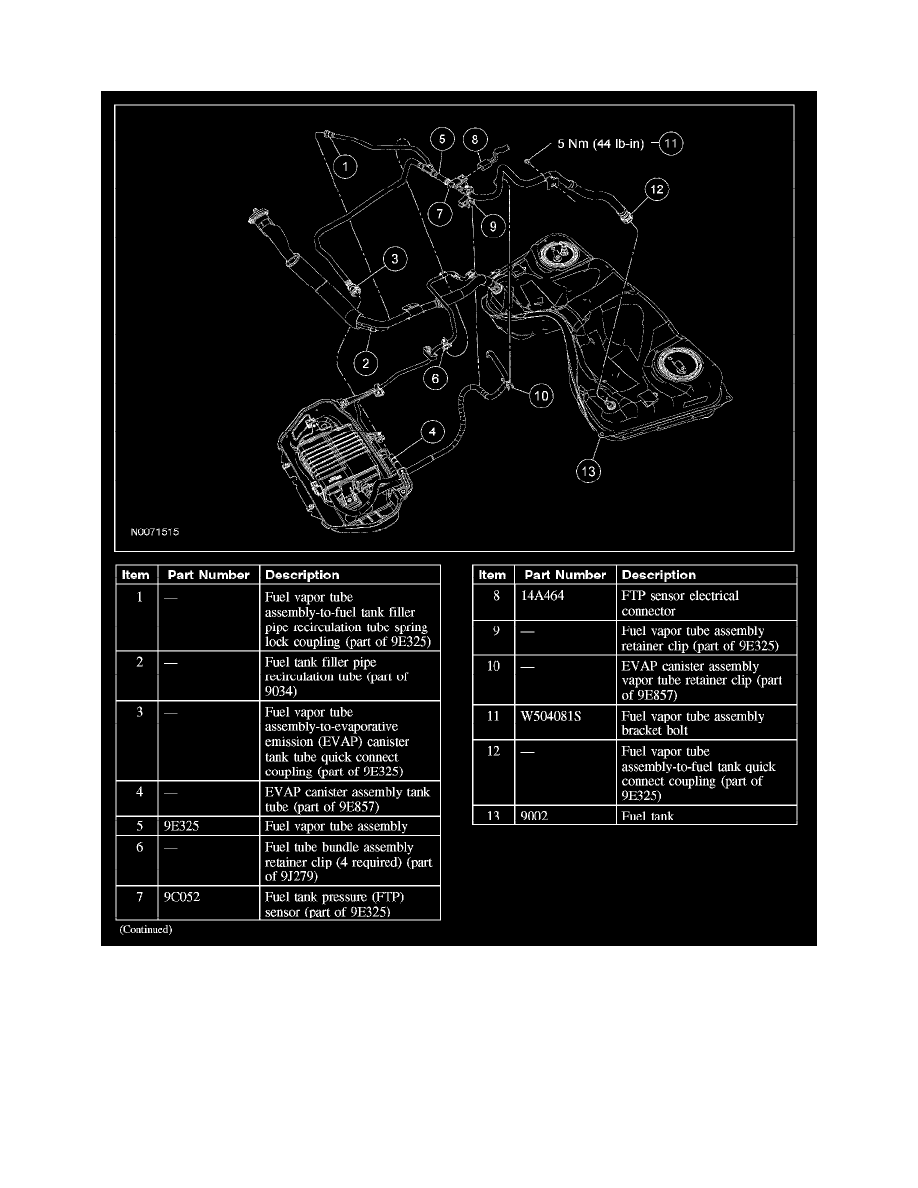

FUEL VAPOR TUBE ASSEMBLY
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the fuel tank pressure (FTP) sensor electrical connector.
3. Disconnect the fuel vapor tube assembly-to-fuel tank quick connect coupling.
4. Disconnect the fuel vapor tube assembly-to-evaporative emission (EVAP) canister tank tube quick connect coupling.
5. Disconnect the fuel vapor tube assembly-to-fuel tank filler pipe recirculation tube quick connect coupling.
6. Remove the fuel vapor tube assembly bracket bolt.
-
To install, tighten to 5 Nm (44 lb-in).
7. Release the fuel vapor tube assembly retainer clip.
8. Release the EVAP canister assembly vapor tube retainer clip.
