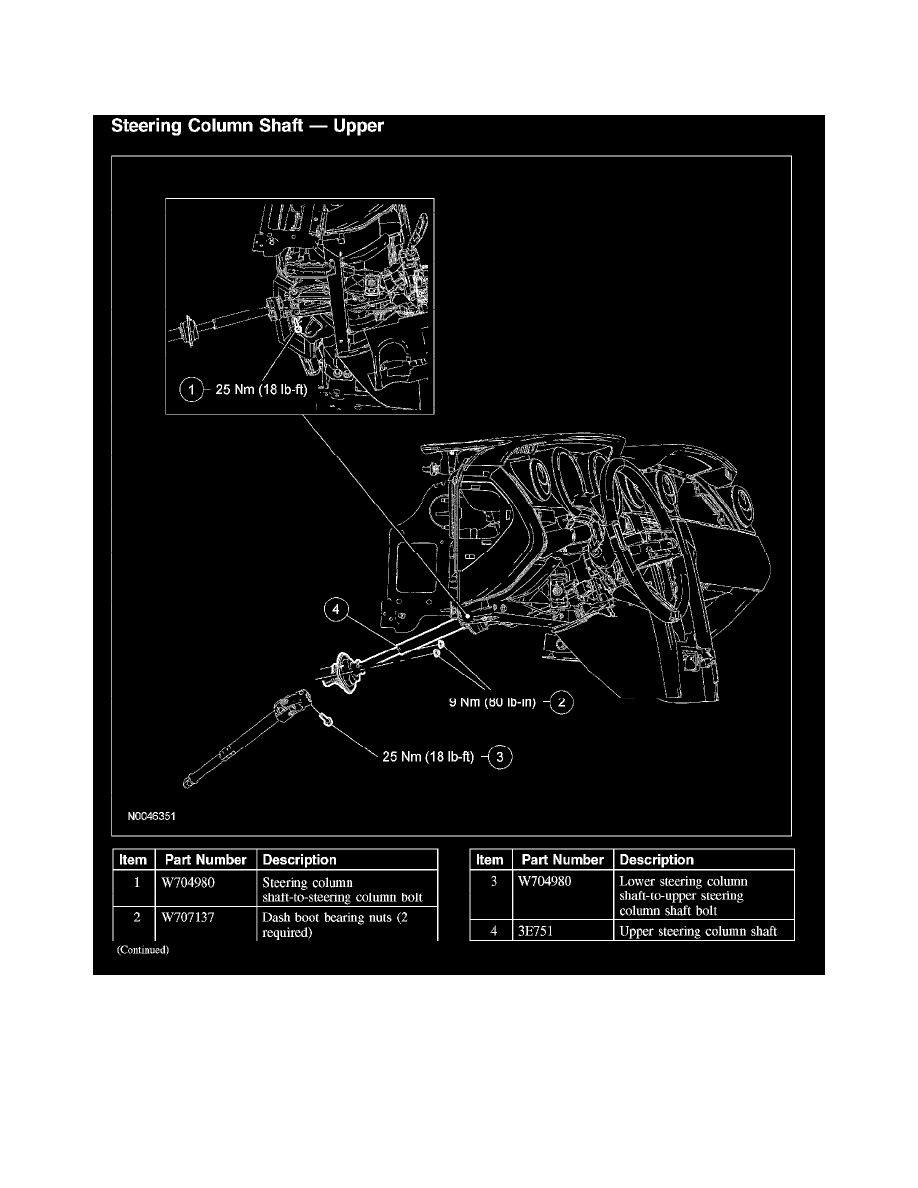

Steering Column Shaft - Upper|Page 4944 > < Steering Column Shaft - Upper
Page 2
background image

3. Remove and discard the lower steering column shaft-to-upper steering column shaft bolt.

^

To install, tighten to 25 Nm (18 lb-ft).

4. Remove the 2 dash boot bearing nuts.

^

To install, tighten to 9 Nm (80 lb-in).

5. Remove and discard the steering column shaft-to-steering column bolt.

^

To install, tighten to 25 Nm (18 lb-ft).

6. Remove the upper steering column shaft. Collapse the steering column shaft slightly to facilitate removal.
7. To install, reverse the removal procedure.
