Mustang V6-4.0L (2008)
Clutch Disc: Testing and Inspection
Clutch Disc Check

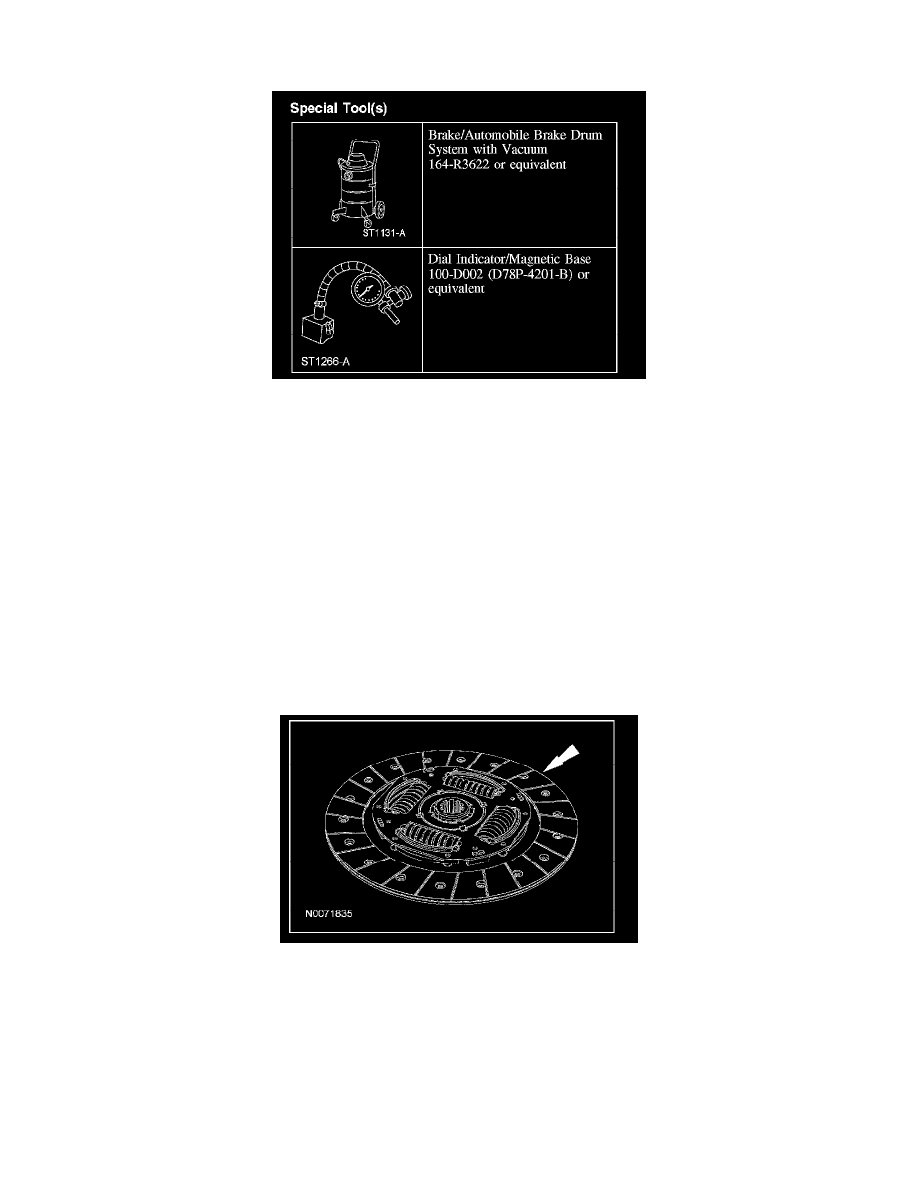

Special Tool(s)
WARNING: DANGER, do not breathe dust or use compressed air to blow dust from storage containers or friction components. Use a low
pressure/wet cleaning method, such as a solvent based brake and clutch cleaner to remove all adherent dust. Friction component dust may be
a cancer and lung disease hazard. Exposure to potentially hazardous components may occur if dusts are created during repair of friction
components, such as brake pads and clutch discs. Exposure may also cause irritation to skin, eyes and respiratory tract, and may cause
allergic reactions and/or may lead to other chronic health effects. If irritation persists, seek medical attention or advice. Failure to follow
these instructions may result in serious personal injury.
NOTE: The 5.4L application is an assembly of discs and plates. It is serviced as an assembly only.
1. Check the clutch disc for the following conditions. Install a new clutch disc as necessary.
^
Lining surface for hardening
^
Presence of oil
^
Loose clutch disc lining rivet
^
Cracking, scoring or other surface marks
^
Use an emery cloth to remove minor imperfections in the clutch disc lining surface
^
Discoloration
2. Check for a worn clutch disc lining. Measure the minimum allowable depth to the rivet heads with a slide caliper. Install a new clutch disc as
necessary.
