TFI IV

Closed Bowl

Distributor
Part 2

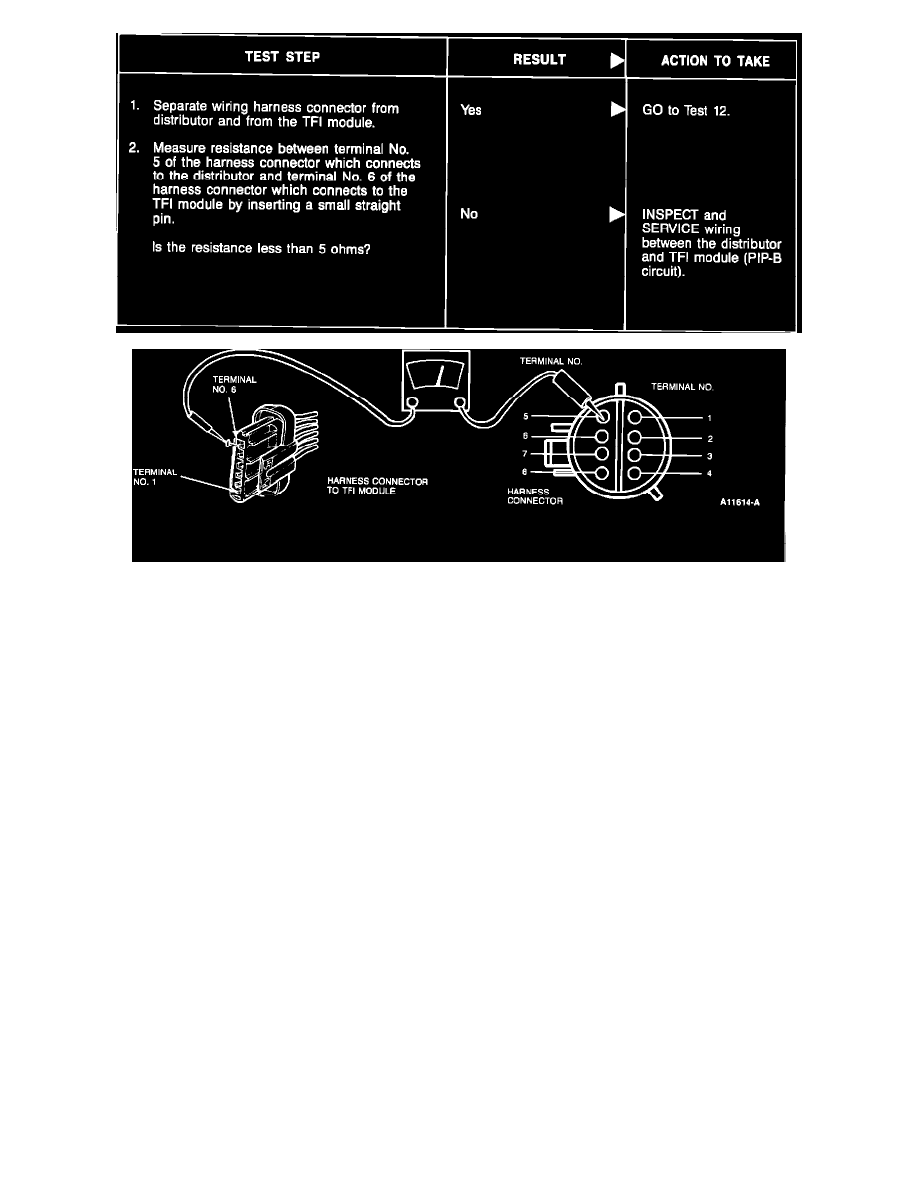

Test 11

Ignition Coil, TFI & Stator Voltage

Powertrain Management
Relays and Modules - Powertrain Management
Relays and Modules - Ignition System / Ignition Control Module / Technical Service Bulletins
All Technical Service Bulletins for Ignition Control Module:
872110 / Oct / 87 / TFI Module/PIP Sensor - New Diagnostic Procedure
