Mustang V8-4.6L SC VIN Y (2004)
1. NOTE: Clean the clutch pressure plate and flywheel with a commercial alcohol-based solvent so surfaces are free from oil film. Do not use
cleaners with a petroleum base.
NOTE: Before installing the transmission, the ball stud, the clutch release lever and the input shaft must be cleaned and lubricated with grease.
To install, reverse the removal procedure.
^

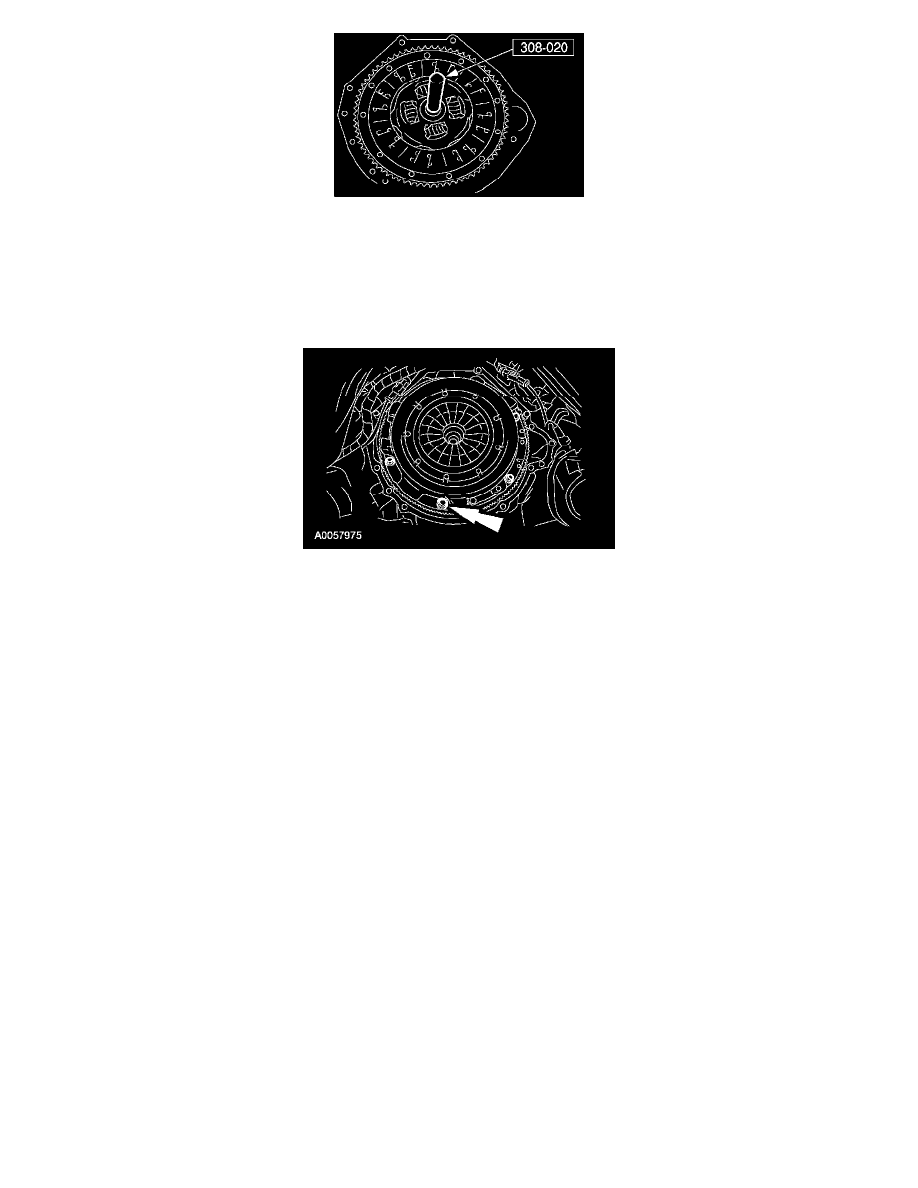

Using the special tool, align the clutch disc and pressure plate to the flywheel.
2. Tighten the pressure plate bolts in two stages.
^
Stage 1: Tighten the bolts to 45 Nm (33 ft. lbs.).
^
Stage 2: Tighten the bolts an additional 60°.
