Mustang V8-5.4L SC VIN S (2007)

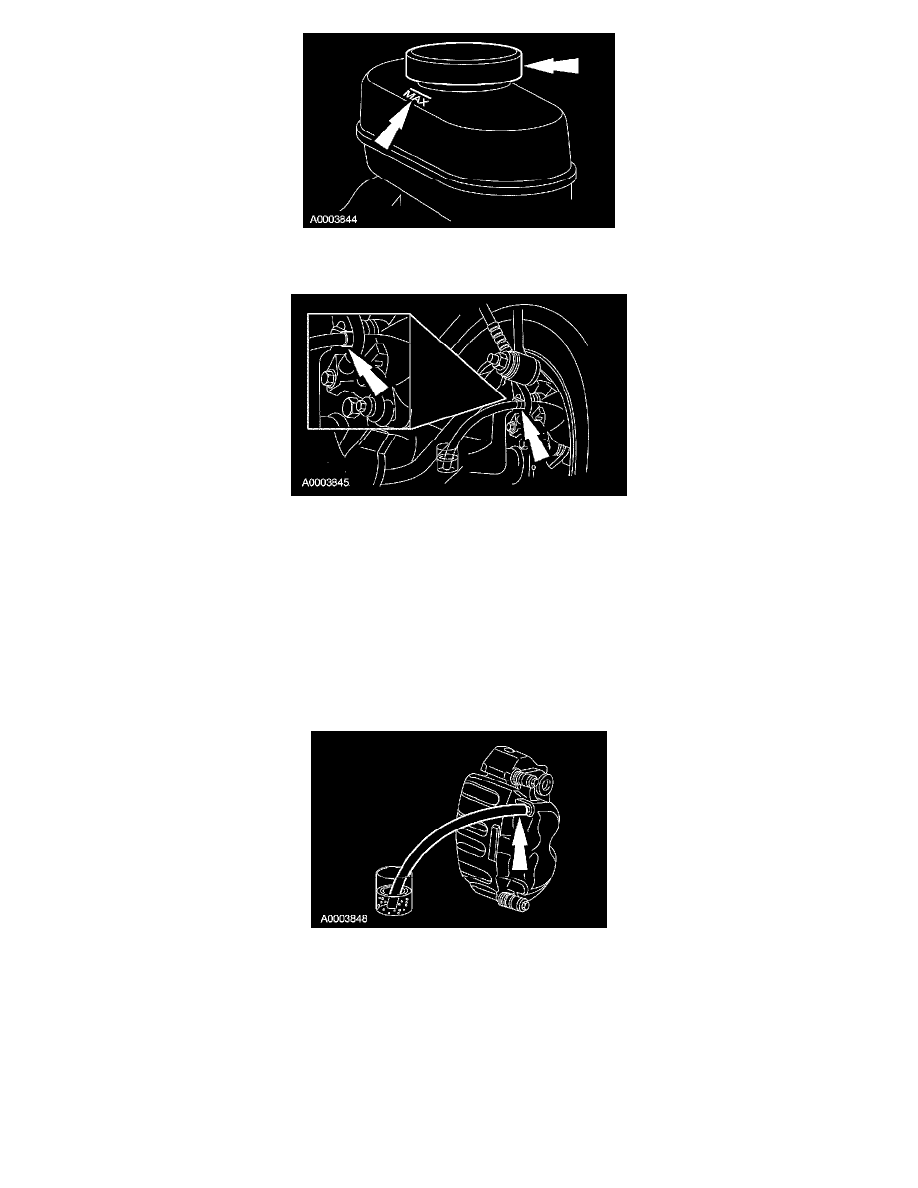

3. Remove the RH rear bleeder cap and place a box-end wrench on the RH rear bleeder screw. Attach a rubber drain hose to the RH rear bleeder
screw and submerge the free end of the hose in a container partially filled with clean, specified brake fluid.
4. Have an assistant hold firm pressure on the brake pedal.
5. Loosen the RH rear bleeder screw until a stream of brake fluid comes out. While the assistant maintains pressure on the brake pedal, tighten the
RH rear bleeder screw.
-
Repeat until clear, bubble-free fluid comes out.
-
Refill the brake master cylinder reservoir as necessary.
6. Tighten the RH rear brake caliper bleeder screw and install the bleeder cap.
-
Tighten to 10 Nm (89 inch lbs.).
7. Repeat Steps 3 through 6 for the LH rear brake caliper bleeder screw.
Vehicles equipped with a 4.0L SOHC or 4.6L (3V) engine
8. Remove the RH front bleeder cap and place a box-end wrench on the RH front brake caliper bleeder screw. Attach a rubber drain hose to the RH
front brake caliper bleeder screw and submerge the free end of the hose in a container partially filled with clean, specified brake fluid.
9. Have an assistant hold firm pressure on the brake pedal.
10. Loosen the RH front brake caliper bleeder screw until a stream of brake fluid comes out. While the assistant maintains pressure on the brake pedal,
tighten the RH front brake caliper bleeder screw.
-
Repeat until clear, bubble-free fluid comes out.
-
Refill the brake master cylinder reservoir as necessary.
11. Tighten the RH front brake caliper bleeder screw and install the bleeder cap.
-
Tighten to 10 Nm (89 inch lbs.).
12. Repeat Steps 8 through 11 for the LH front brake caliper bleeder screw.
Vehicles equipped with a 5.4L engine
13. Remove the RH front inner bleeder cap and place a box-end wrench on the RH front inner brake caliper bleeder screw. Attach a rubber drain hose
to the RH front inner bleeder screw and submerge the free end of the hose in a container partially filled with clean, specified brake fluid.
