Ranger 2WD V6-177 2.9L (1989)
Compressor Clutch Coil: Service and Repair
Clutch Field Coil

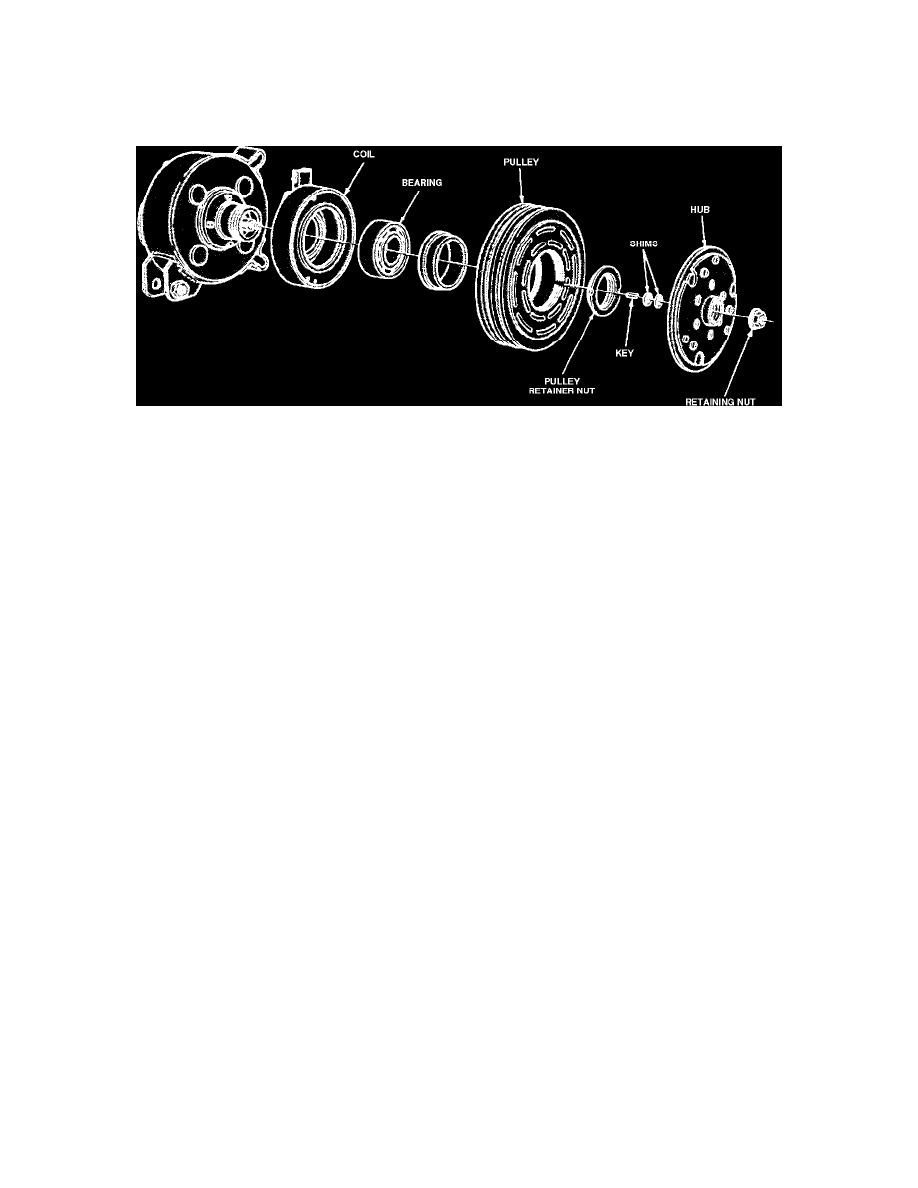

CLUTCH FIELD COIL
REMOVAL
1.
Remove clutch hub and pulley.
2.
Remove snap ring retaining clutch field coil on front of compressor.
3.
Remove field coil.
INSTALLATION
1.
Position clutch field coil to compressor, engaging locator pin on compressor head with hole in clutch field coil.
2.
Install snap ring to retain clutch field coil on compressor with bevel side out.
3.
Install pulley and hub on compressor.
