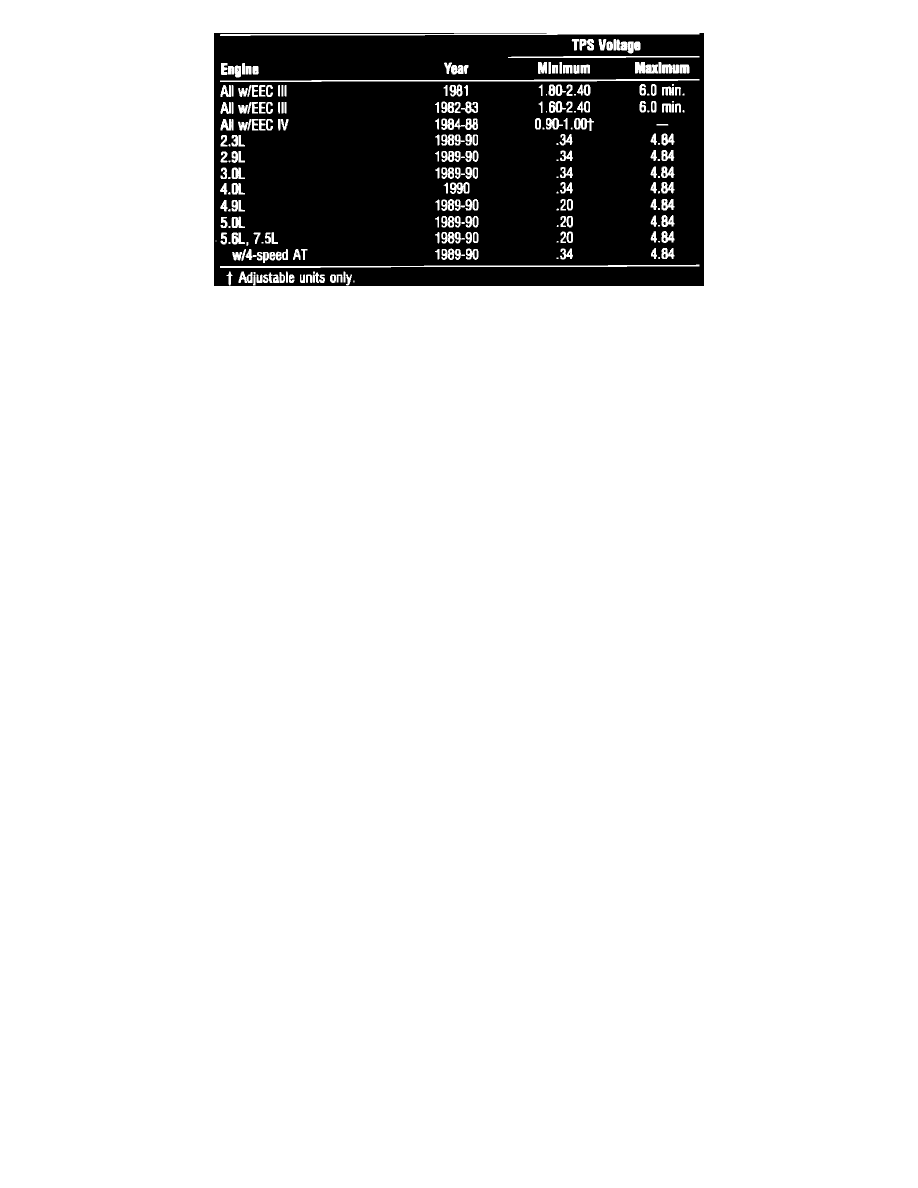

THROTTLE POSITION SENSOR SPECIFICATIONS

Powertrain Management
Computers and Control Systems
Sensors and Switches - Computers and Control Systems
Throttle Position Sensor / Technical Service Bulletins
Page 2365
