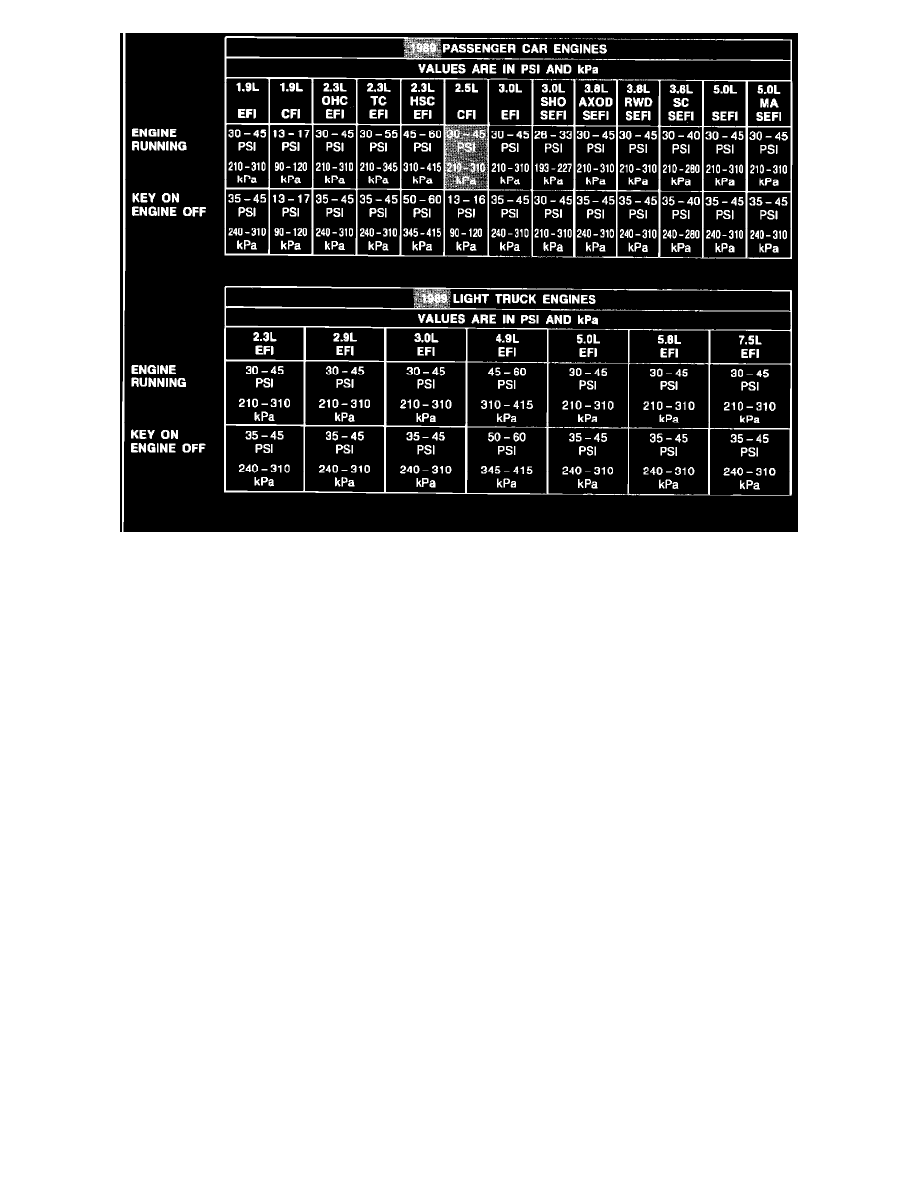

FUEL PRESSURE SPECIFICATION TABLE

Powertrain Management
Fuel Delivery and Air Induction
Fuel Pump / Fuel Pressure / System Information / Technical Service Bulletins / Fuel Pressure Specification - Corrections
Page 2736
