Ranger 2WD V6-177 2.9L (1989)

Page 1
background image

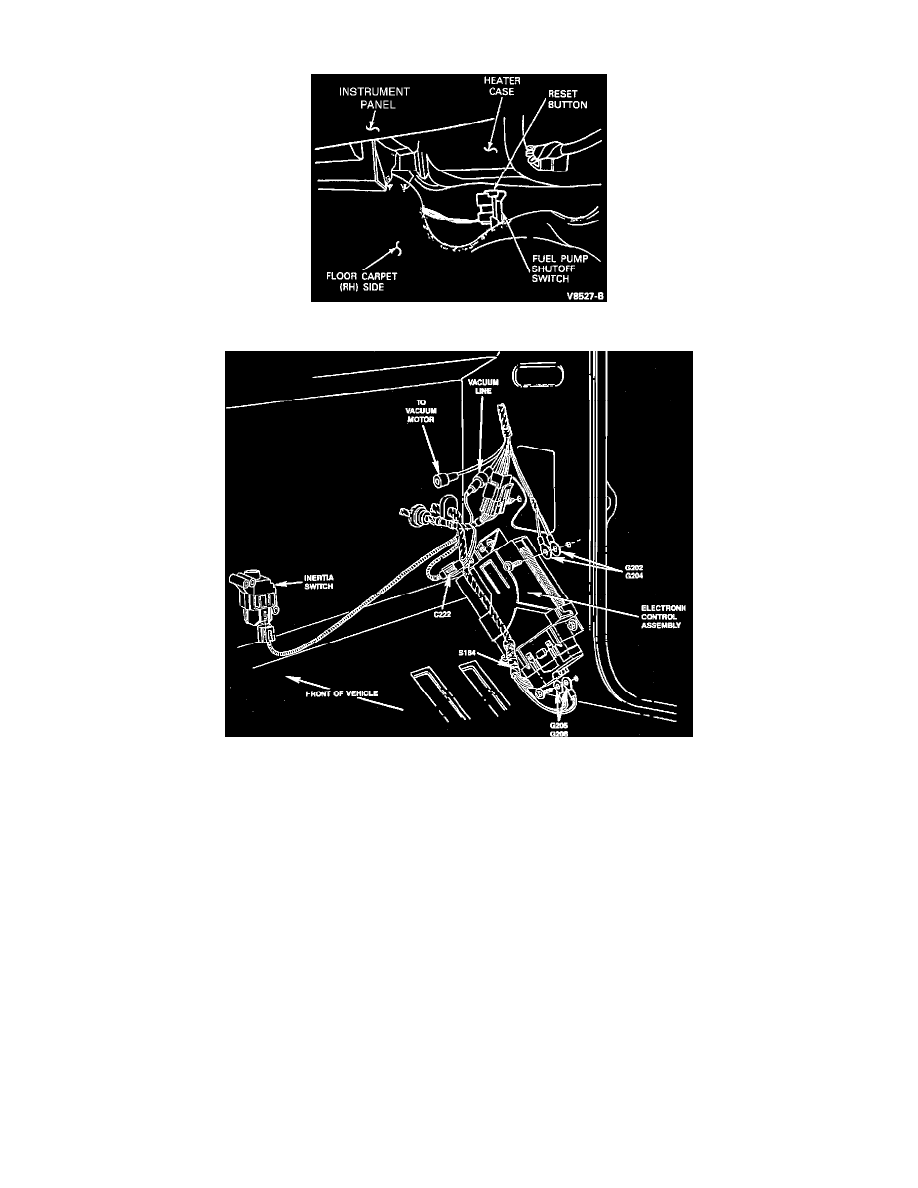

Fuel Pump Inertia Switch: Locations

Inertia Switch

Electronic Control Assembly

The inertia switch is located below the instrument panel, to the right of the transmission hump.
