Ranger 2WD V6-177 2.9L (1989)

Page 1
background image

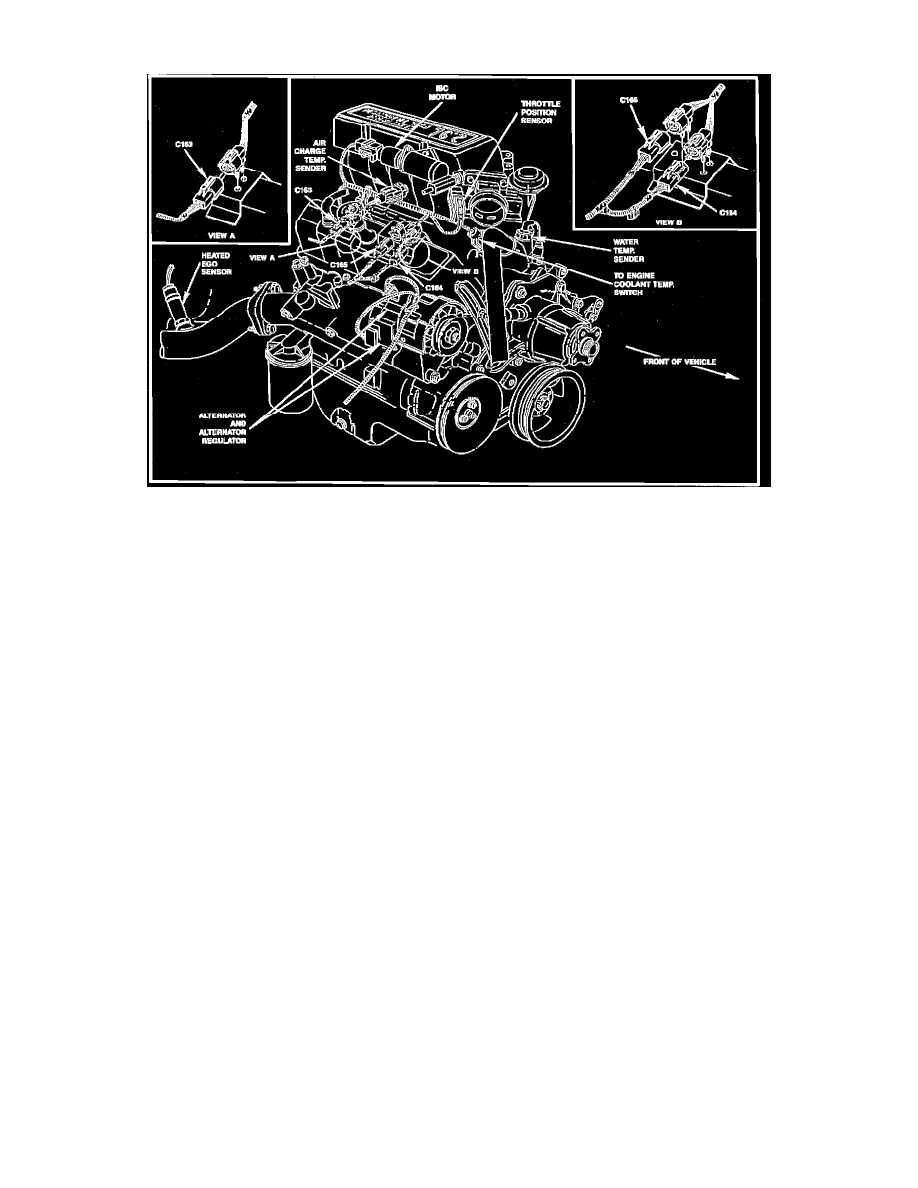

Throttle Position Sensor: Locations

RH Side Of Engine.

 At Throttle Body

Applicable to:  V6-179/2.9L
