TEMPERATURE SENSORS

Powertrain Management
Sensors and Switches - Powertrain Management / Sensors and Switches - Computers and Control Systems
Coolant Temperature Sensor/Switch (For Computer)
Component Information

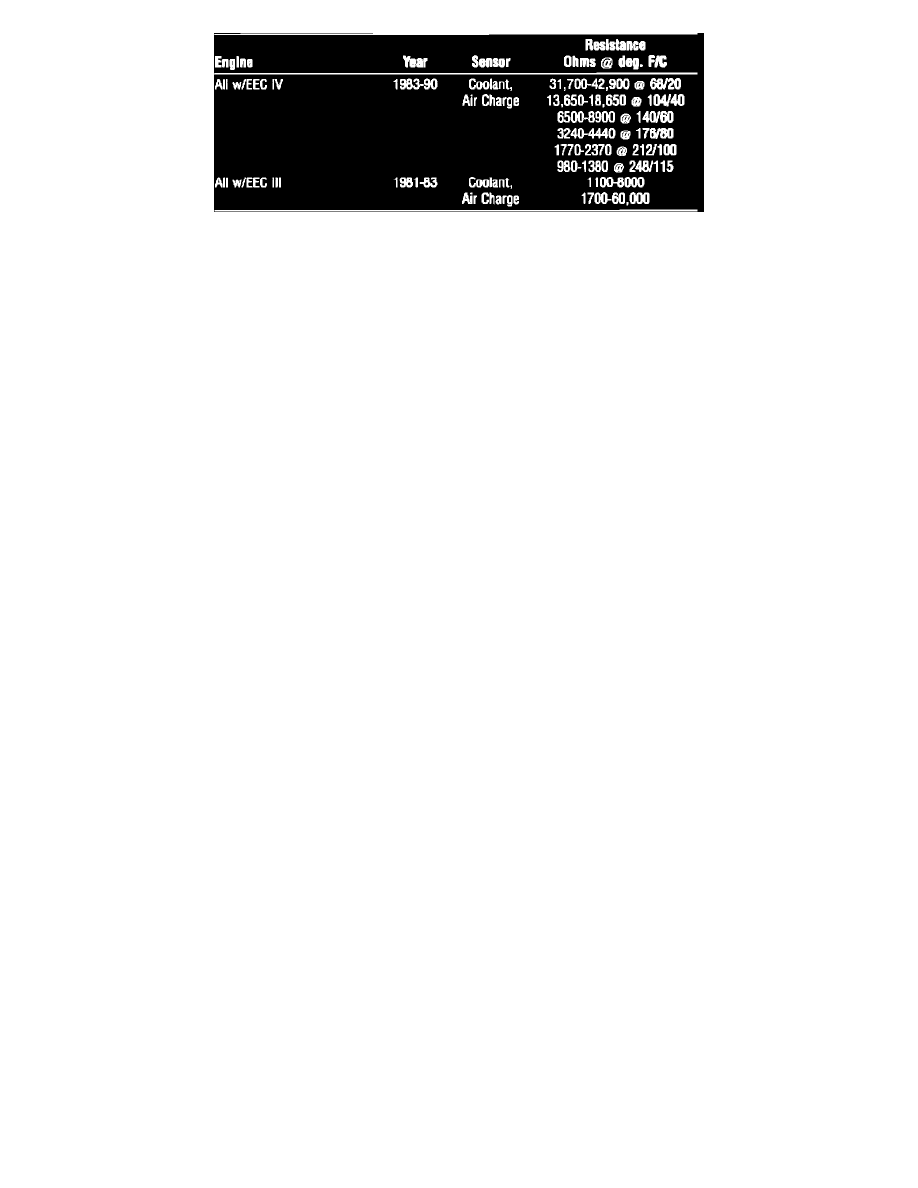

Specifications
