Ranger 4WD L4-140 2.3L VIN A EFI (1997)

Page 1
background image

Control Module: Locations

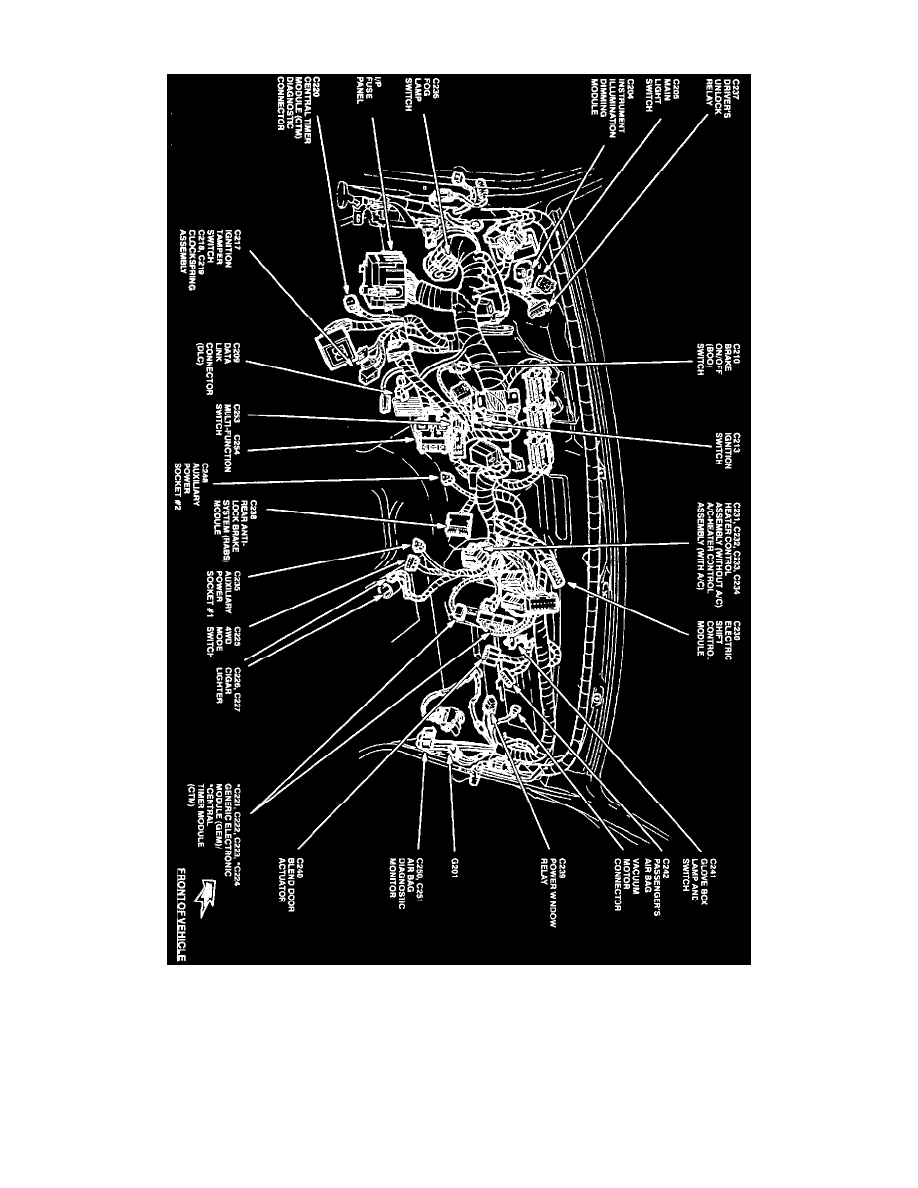

Behind Instrument Panel View

The Electric Shift Control Module is located behind center of the instrument panel.
