Ranger 4WD L4-2.3L VIN D (2002)
Fuel Tank Pressure Sensor: Service and Repair
REMOVAL
1. Raise vehicle on appropriate hoist.

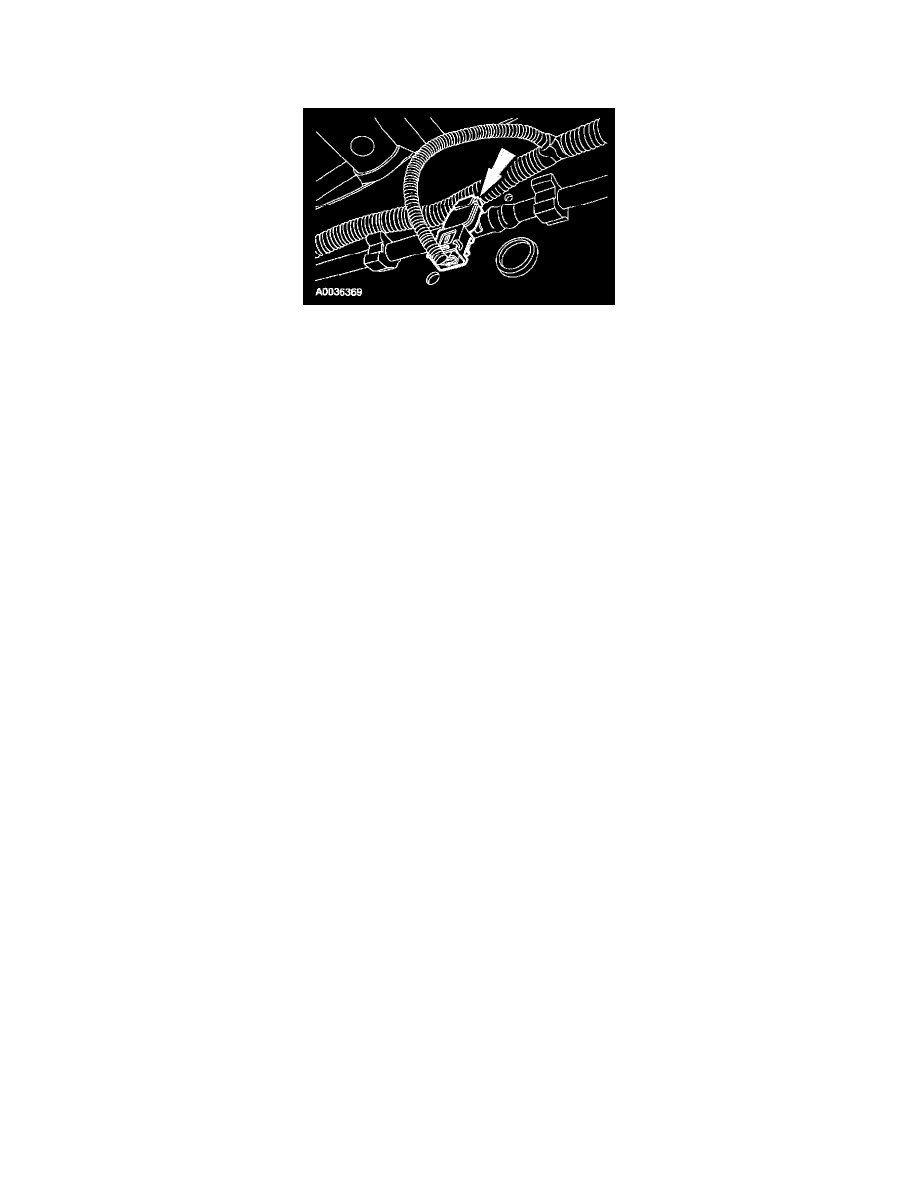

2. Disconnect the electrical connector.
3. Remove the fuel tank pressure sensor and fuel line assembly.
NOTE: A new vapor line assembly must be installed for a new pressure sensor to be installed.
INSTALLATION
1. To install, reverse the removal procedure.
^
Carry out the leak test. See: Emission Control Systems/Evaporative Emissions System/Testing and Inspection/Component Tests and General
Diagnostics/Evaporative Emission System Leak Test
^
Carry out the evaporative emission repair verification drive cycle. See: Emission Control Systems/Evaporative Emissions System/Testing and
Inspection/Component Tests and General Diagnostics/Evaporative Emission Repair Verification Drive Cycle
