Ranger 4WD V6-245 4.0L (1991)
Brake Rotor/Disc: Service and Repair
With Manual Locking Hubs

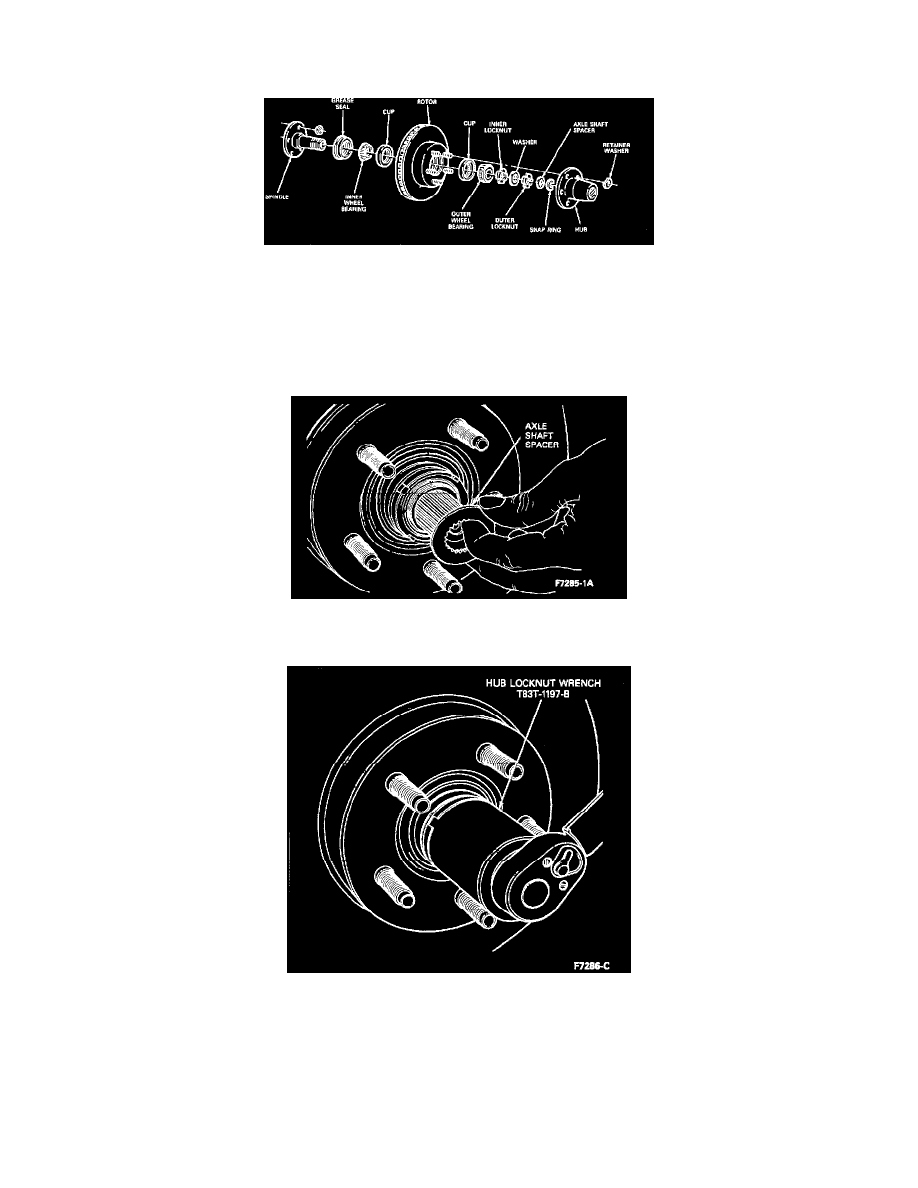

Fig. 5 Manual Locking Hub
With Manual Locking Hubs
1. Raise the vehicle and install safety stands.
2. Remove the wheel lugnuts and wheel and tire assembly.
3. Remove the retainer washers from the lugnut studs and the manual locking hub assembly from the spindle.
4. Remove the snap ring from the end of the spindle shaft.
5. Remove the axle shaft spacer.
6. Remove the outer wheel bearing locknut from the spindle using Hub Locknut Wrench T83T-1197-B. Engage tool tabs into locknut slots.
Locknut Wrench
7. Remove locknut washer from spindle.
