Ranger 4WD V6-245 4.0L (1991)
Automatic Locking Hub Installation

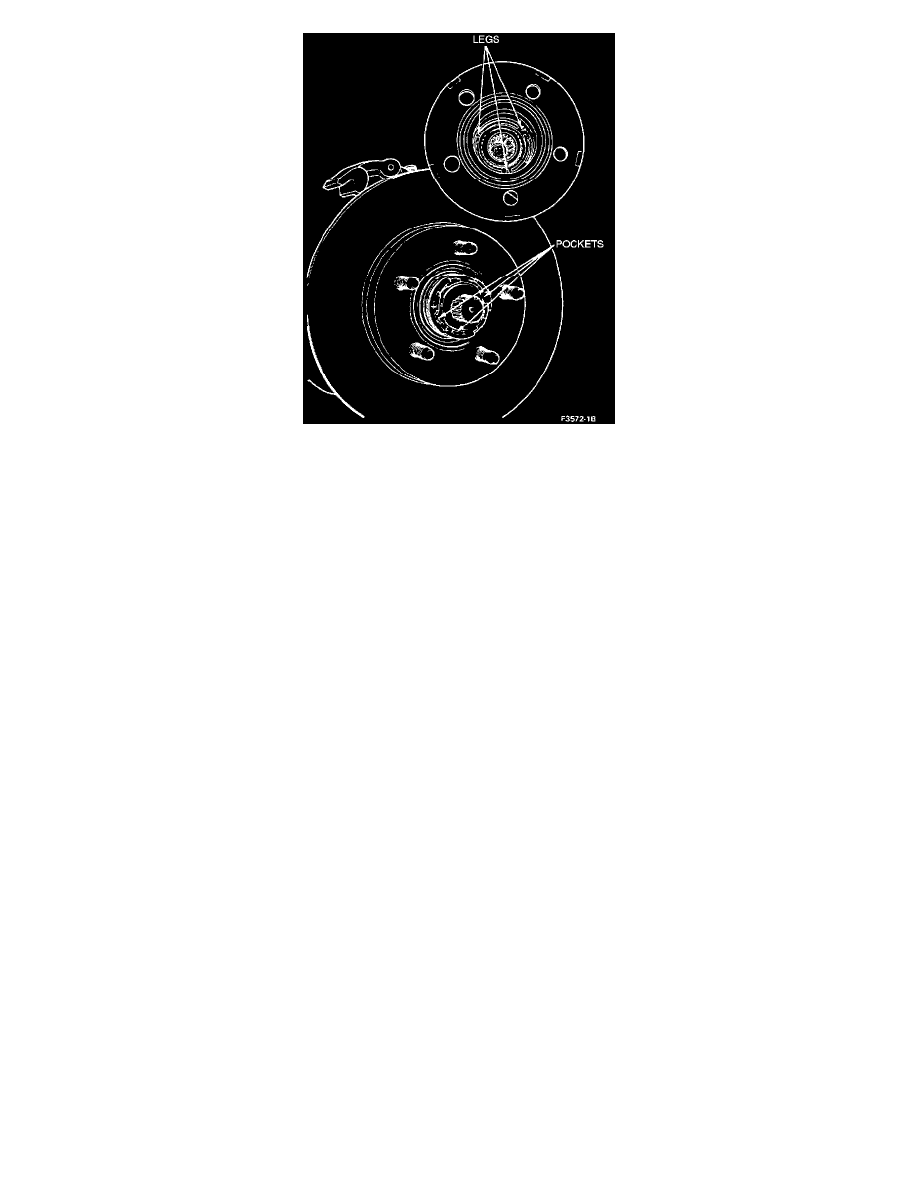

15. Install the automatic locking hub assembly over the spindle by lining up the three hub assembly legs with three pockets in cam assembly. Install
the retainer washers.
16. Install the wheel and tire assembly. Install and tighten lugnuts to 135 Nm (100 ft lb).
17. Make sure the final end play of the wheel on the spindle is 0.00-0.08 mm (0.000-0.003 inch). the maximum torque to rotate the hub is 2.8 Nm (25
in lb).
