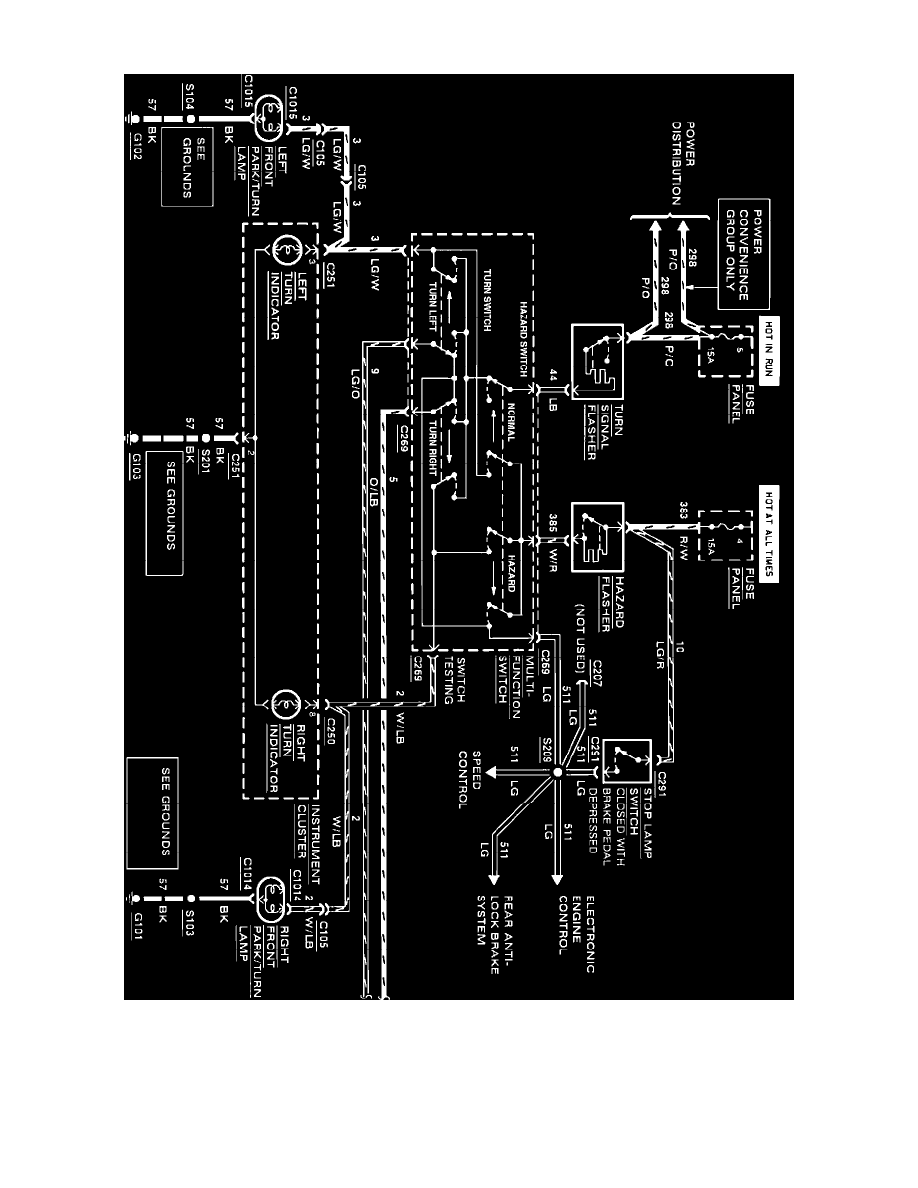

Turn Signal Switch: Electrical Diagrams

Turn/Stop/Hazard Lamps

Lighting and Horns
Turn Signals
Turn Signal Switch / Diagrams / Diagram Information and Instructions
Page 7573
