Ranger 4WD V6-245 4.0L (1991)
Fuel Injector: Technical Service Bulletins
Fuel Injector Specifications - Manual Revisions
Article No.
91-5B-27
03/22/91
ENGINE EMISSIONS DIAGNOSIS SHOP MANUAL - 1991 - PAGE 6-185 - FUEL INJECTOR RESISTANCE
SPECIFICATIONS ADDED
LIGHT TRUCK:
1991 AEROSTAR, EXPLORER, RANGER
ISSUE:
The fuel injector resistance specifications for the 4.0L Engine were omitted from the charts on Page 6-185 of the 1991 Engine Emissions
Diagnosis Shop Manual. These specifications appear as part of Pinpoint Test H, Fuel Control.
ACTION:

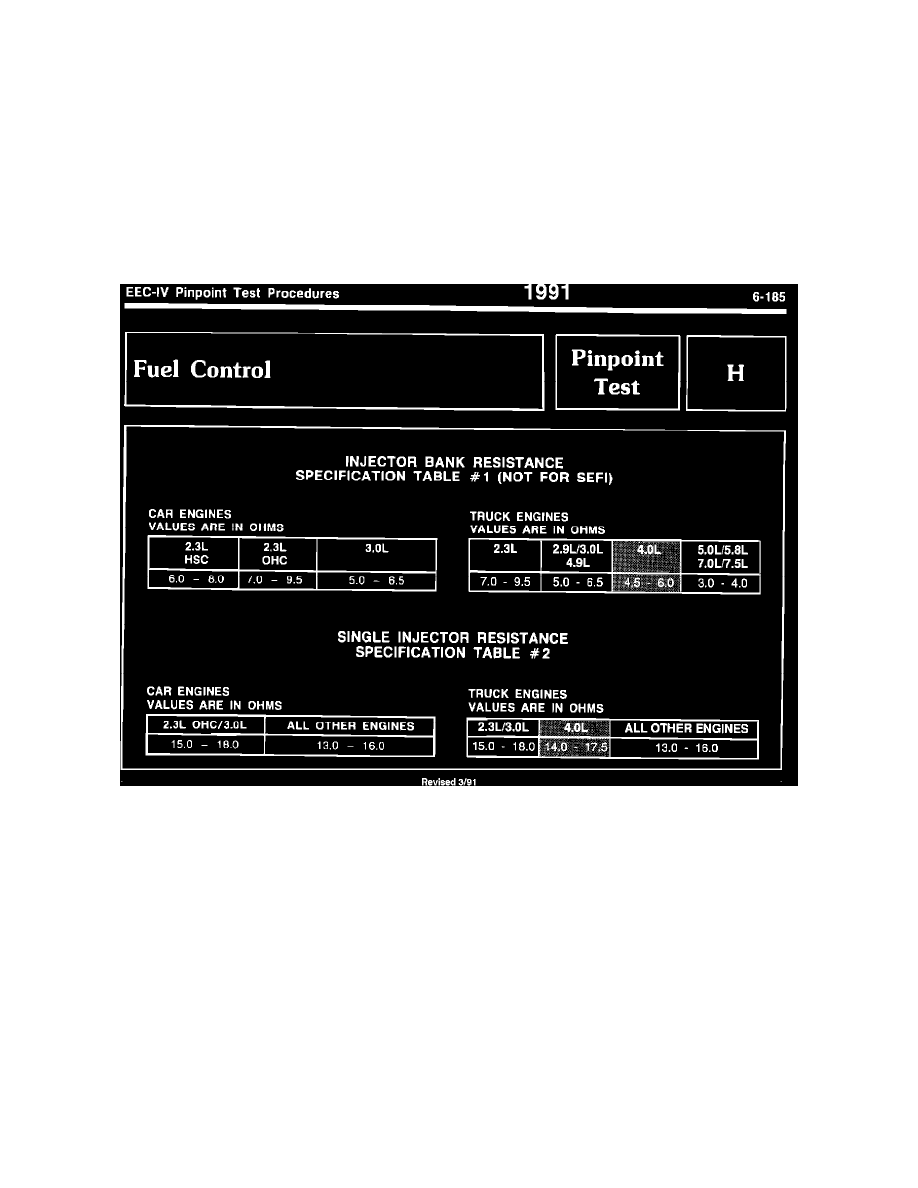

Refer to the pages following this TSB article for the revised specification charts.
OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES:
490000
