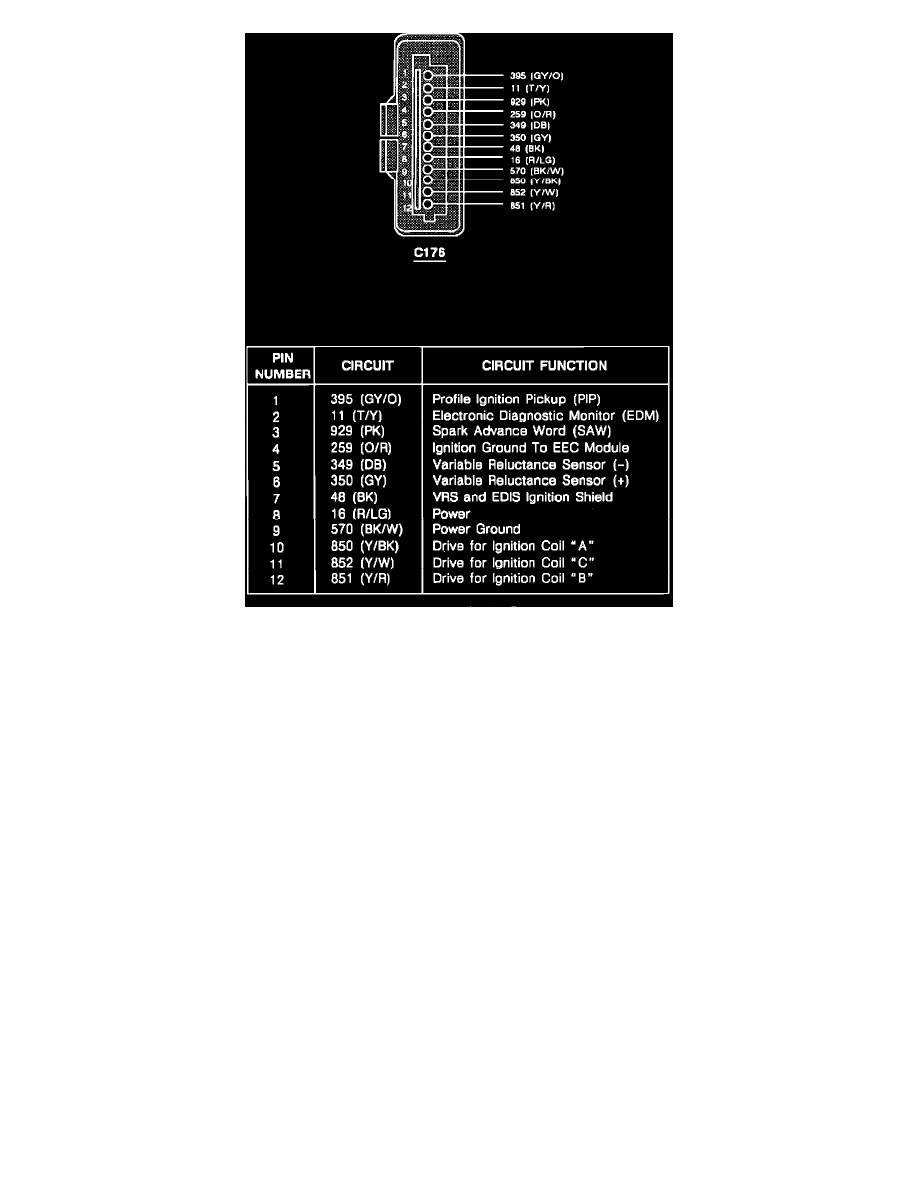

Electronic Distributorless Ignition System (EDIS) Module Connector

Powertrain Management
Ignition System
Ignition Control Module / Technical Service Bulletins
Page 3752
