Electronic Shift Control Module: Locations
Supercab

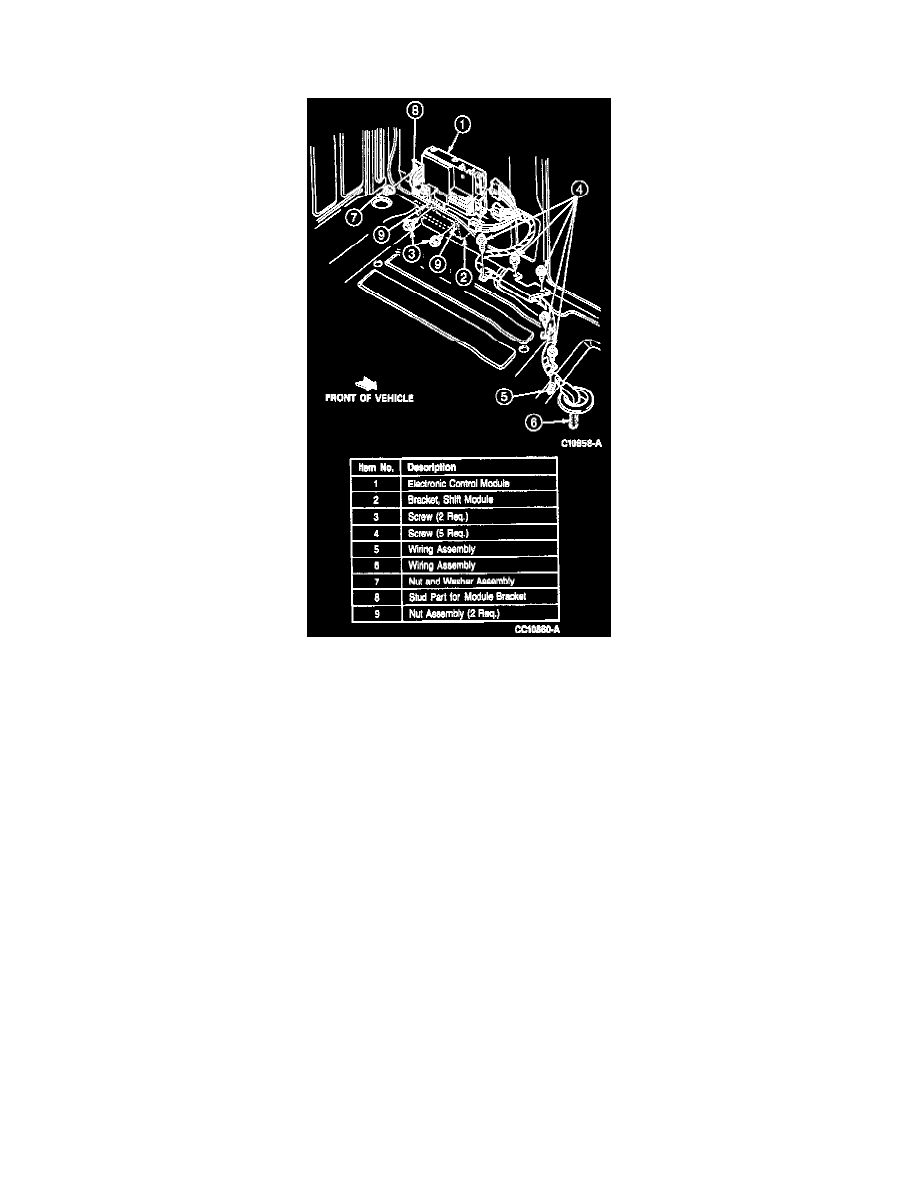

Control Module Circuits, Ranger SuperCab

The Electric Shift Control Module is located between the bottom of the Left Hand "B" pillar and the rear of the cab.
