Ranger 4WD V6-245 4.0L VIN X SFI (1999)

Page 4
background image

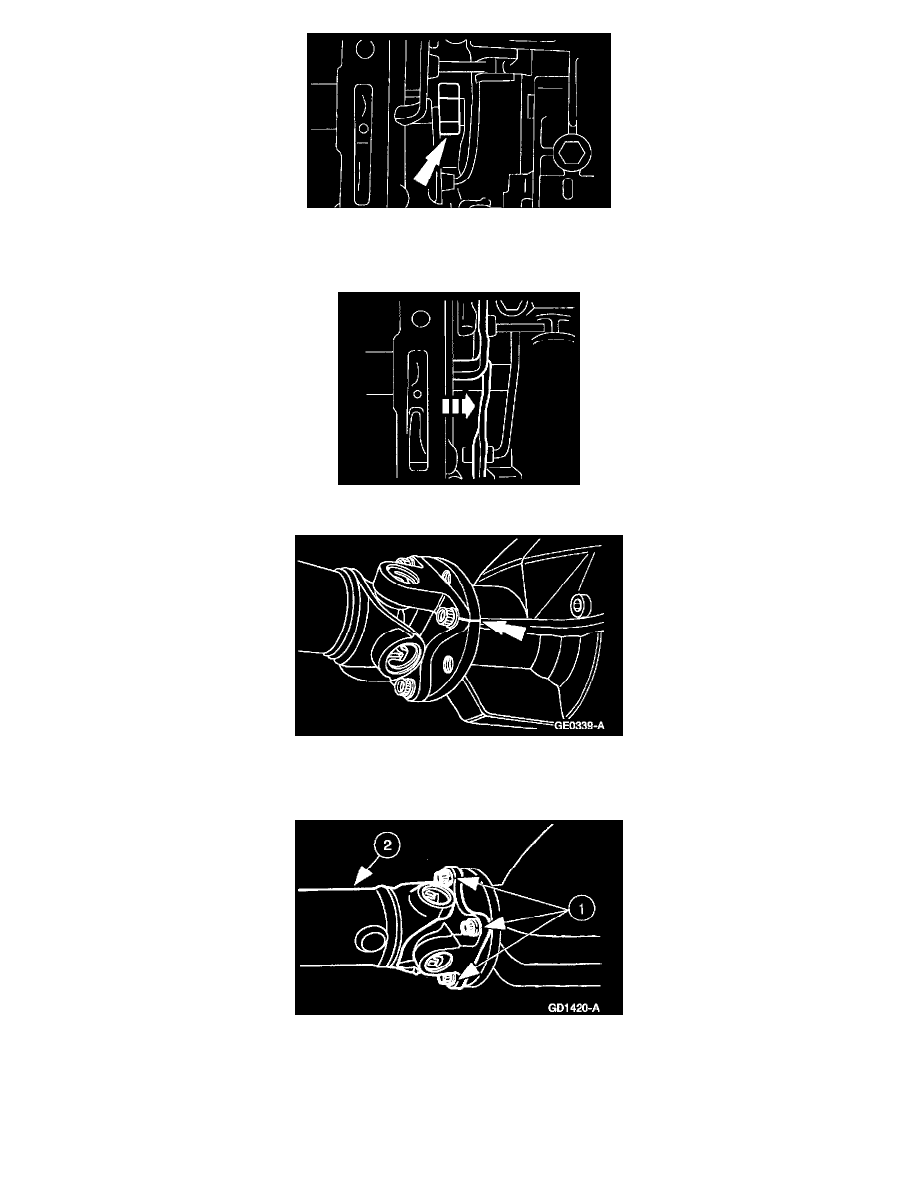

12. CAUTION:  To avoid damage, make sure the wrench does not strike the manual valve inner lever pin.

Remove the manual valve inner lever nut.

13. Remove the manual valve inner lever and parking lever actuating rod.

14. NOTE:  To maintain initial driveshaft balance, mark the rear driveshaft yoke and axle flange so they may be installed in their original alignment.

Mark the rear driveshaft.

15. Remove the rear driveshaft.

1

Remove the bolts.

2

Remove the rear driveshaft.

16. If equipped, remove the transfer case.
