Ranger 4WD V6-4.0L VIN E (2001)
Cruise Control Servo Cable: Adjustments

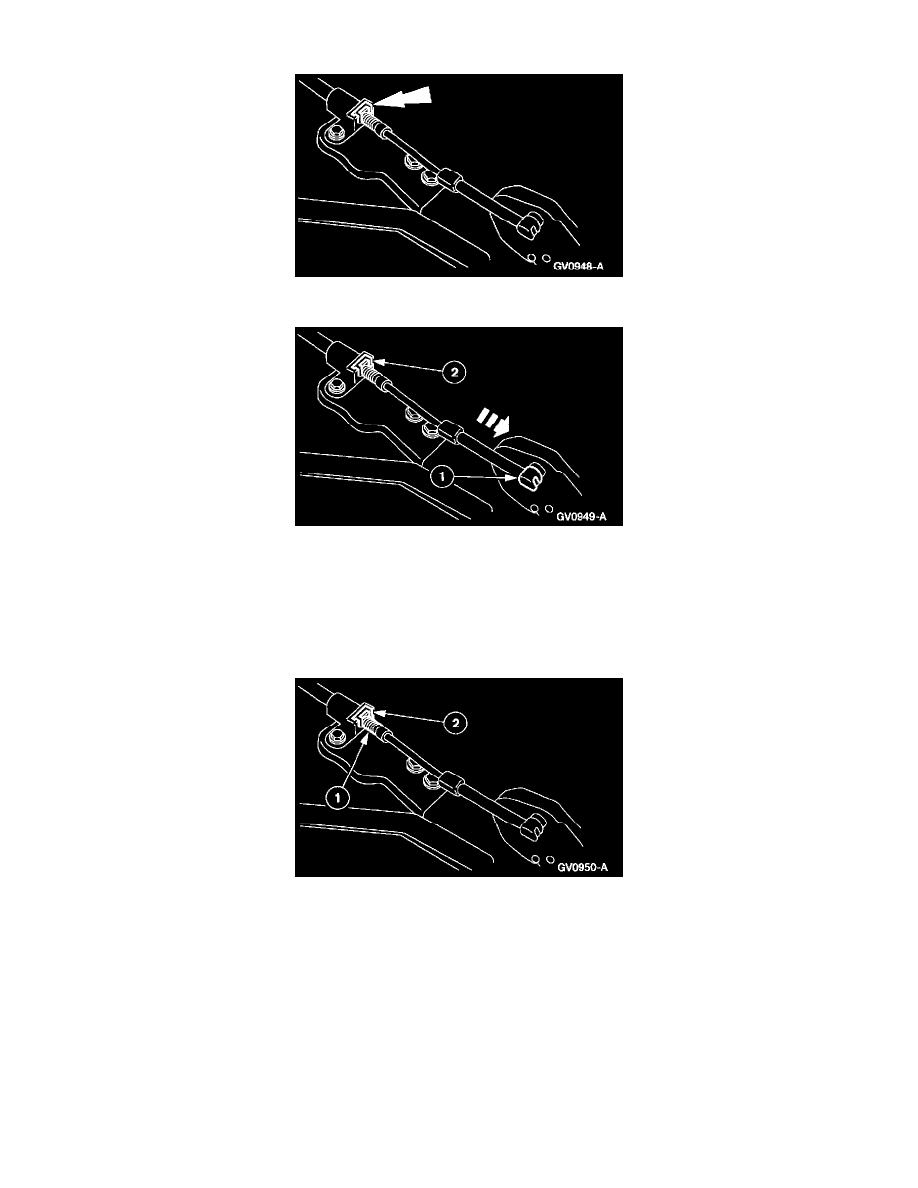

1. Remove the actuator cable clip.
2. Adjust the actuator cable.
1
Pull on the actuator cable to remove any slack.
2
Back off the actuator cable one notch.
NOTE:
^
For correct operation, the actuator cable must not be pulled taut.
^
The throttle body cam will automatically spring set to the closed position. The throttle body cam must be in the closed position.
3. Install the actuator cable clip.
1
Hold the speed control actuator cable.
2
Insert the actuator clip securely.
