Taurus AWD V6-3.5L (2009)

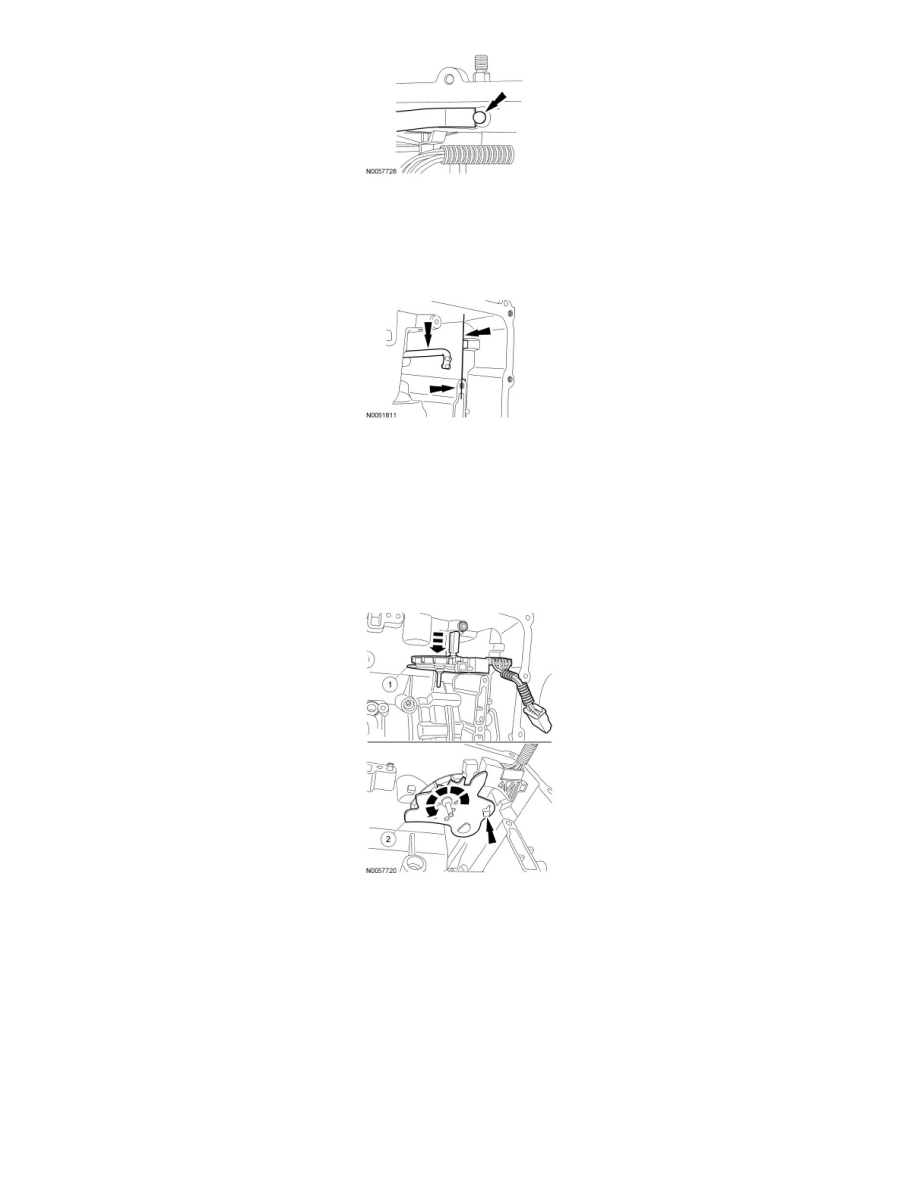

25. NOTE: TR sensor removed for clarity.
Make sure that the park pawl actuator rod does not become disengaged from the park pawl and the abutment by keeping the end of the park pawl
actuator rod behind the machined valve body mating surface of the transaxle case. If the park pawl actuator rod becomes disengaged from the park
pawl and the abutment, transaxle removal and disassembly is required to reinstall the actuator rod.
26. NOTICE: Make sure that the park pawl actuator rod does not become disengaged from the park pawl and the abutment, or transaxle
removal and disassembly is required to reinstall the actuator rod.
Remove the TR sensor.
1. Slide the TR sensor down until the manual shaft is out of the transaxle case.
2. Rotate the TR sensor detent plate counterclockwise, as viewed from below, until the plate rests against the transaxle case, remove the park
pawl actuating rod from the TR sensor and remove the TR sensor.
Installation
1. Install the TR sensor.
1. Position the park pawl actuating rod in the TR sensor.
2. Install the TR sensor in the transaxle case.
