Taurus X AWD V6-3.5L (2009)
Seat Track: Service and Repair
Seat Track - Front
Seat Track - Front
Removal
WARNING: Never probe the electrical connectors on safety belt buckle/retractor pretensioners or adaptive load limiting retractors. Failure to
follow this instruction may result in the accidental deployment of the safety belt pretensioners or adaptive load limiting retractors, which
increases the risk of serious personal injury or death.
WARNING: Install a new occupant classification sensor (OCS) system service kit as a complete assembly. Never install only part of the kit
components. Failure to follow this instruction may result in incorrect operation of the OCS system and increases the risk of serious personal
injury or death in a crash.
WARNING: Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may
result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
NOTICE: To prevent system failure, it is necessary to carry out the Occupant Classification Sensor (OCS) system reset when a front passenger

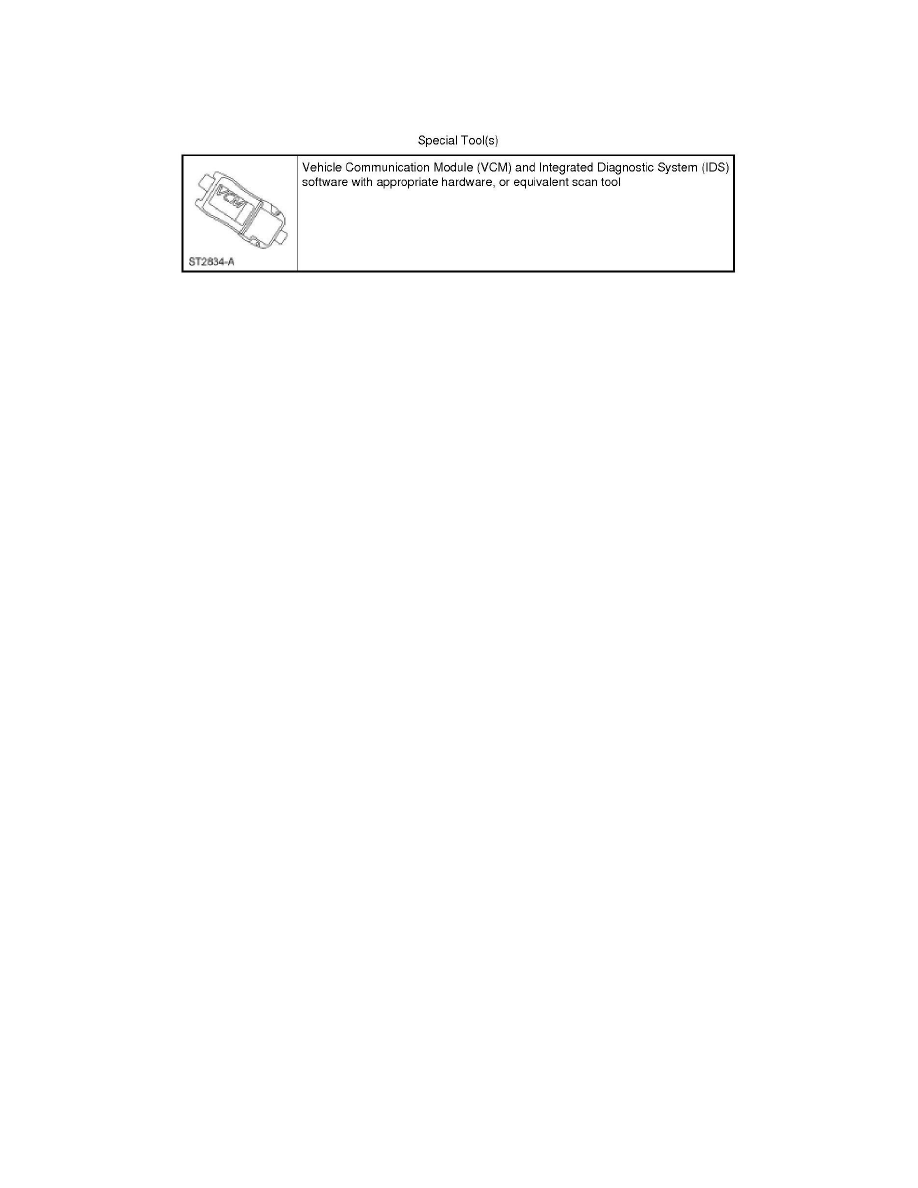

seat cushion is disassembled, a new trim cover installed or an OCS system service kit is installed. A scan tool is used to carry out the OCS
system reset command.
NOTE: The memory seat track position sensors are integral to the memory seat track motors. The memory seat track motor electrical connectors will
connect to a seat track without the memory option. Make sure the correct seat track is being installed.
All seats
1. Remove the front seat. For additional information, refer to Seat - Front See: Service and Repair/Front Seats/Seat - Front.
2. If equipped, pull out and remove the manual recline handle.
3. If equipped, remove the seat control switch knob.
4. If equipped, remove the power recliner knob.
5. Remove the side shield rear screw, pull out on the side and front and separate the side shield.
-
Vehicles with manual seats, remove the side shield.
6. If equipped, disconnect the seat control switch and remove the side shield.
-
Release the seat control switch wire harness pin-type retainer.
-
Disconnect the seat control switch electrical connector.
7. If equipped, disconnect the cushion heater mat electrical connector.
8. Release all cushion trim cover J-clips.
9. Disconnect and detach the safety belt buckle pretensioner electrical connector.
-
Detach the wiring harness pin-type retainer.
Passenger seats
10. Separate the safety belt tension sensor electrical connector from the seat track.
11. Remove the cushion frame-to-seat track bolt.
