Ignition Coil: Service and Repair
Engine Ignition Components - Exploded View - LH Side

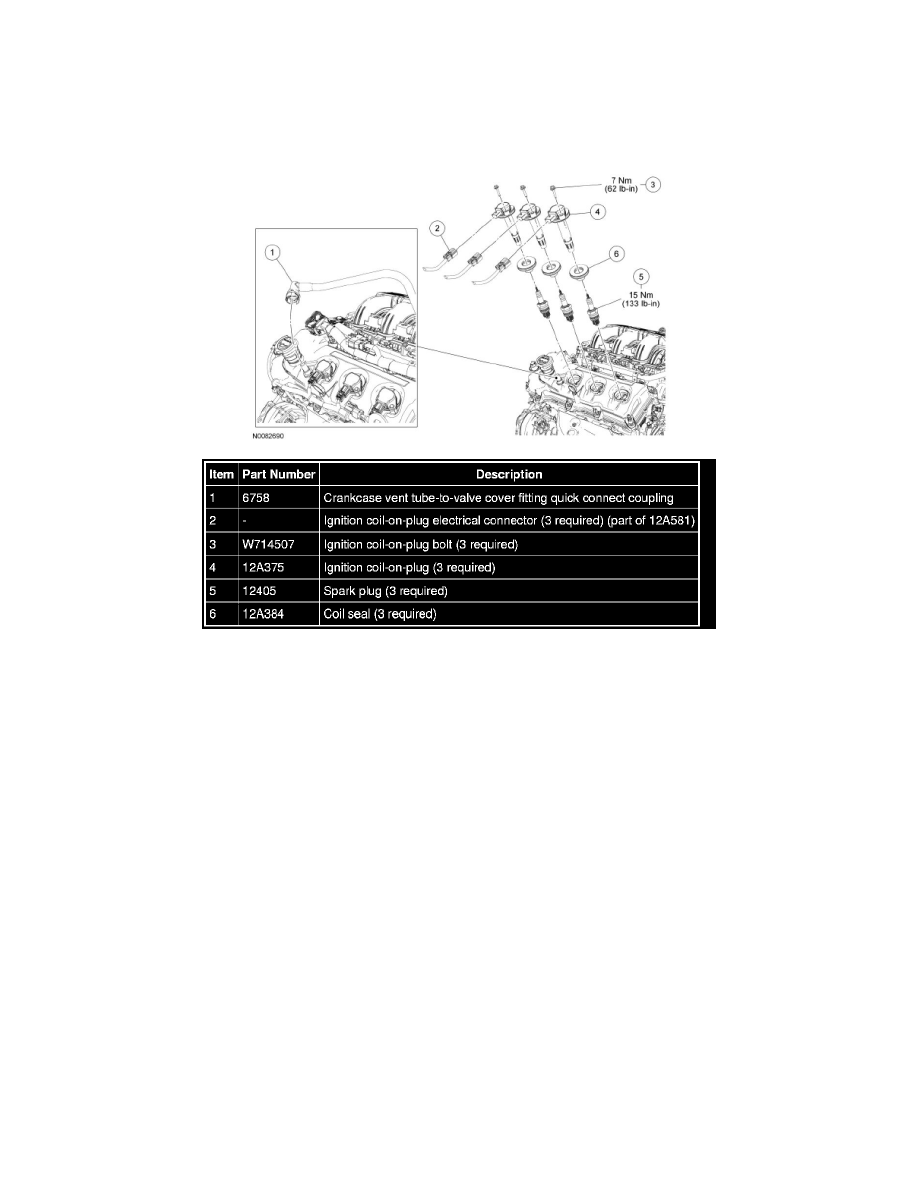

Engine Ignition Components - Exploded View

LH Side

1. For additional information, refer to the procedures.
