Taurus X AWD V6-3.5L (2009)

Page 1
background image

Power Seat Switch: Service and Repair

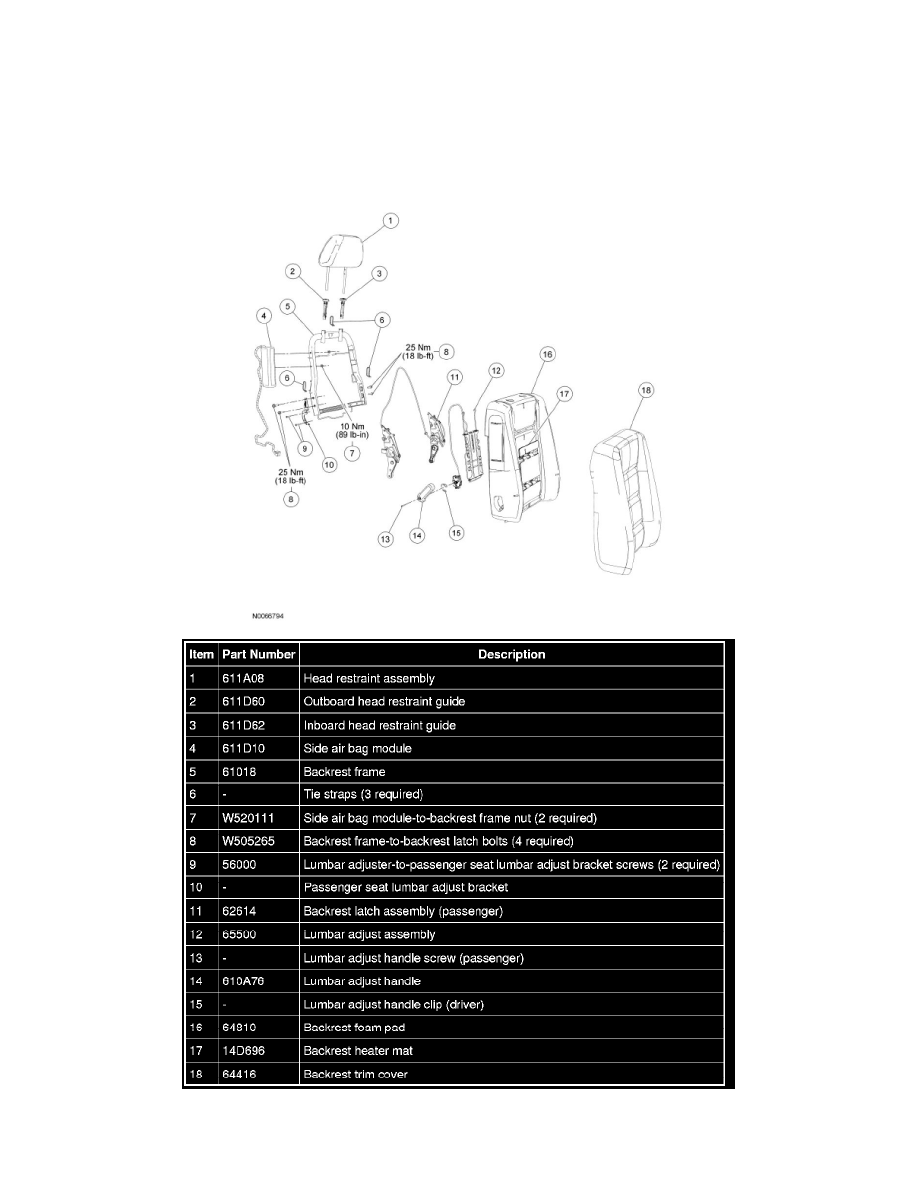

Seat - Exploded View, Front

Seat - Exploded View, Front

Front Seat Backrest

NOTE: RH shown, LH similar.

Driver Front Seat Cushion
