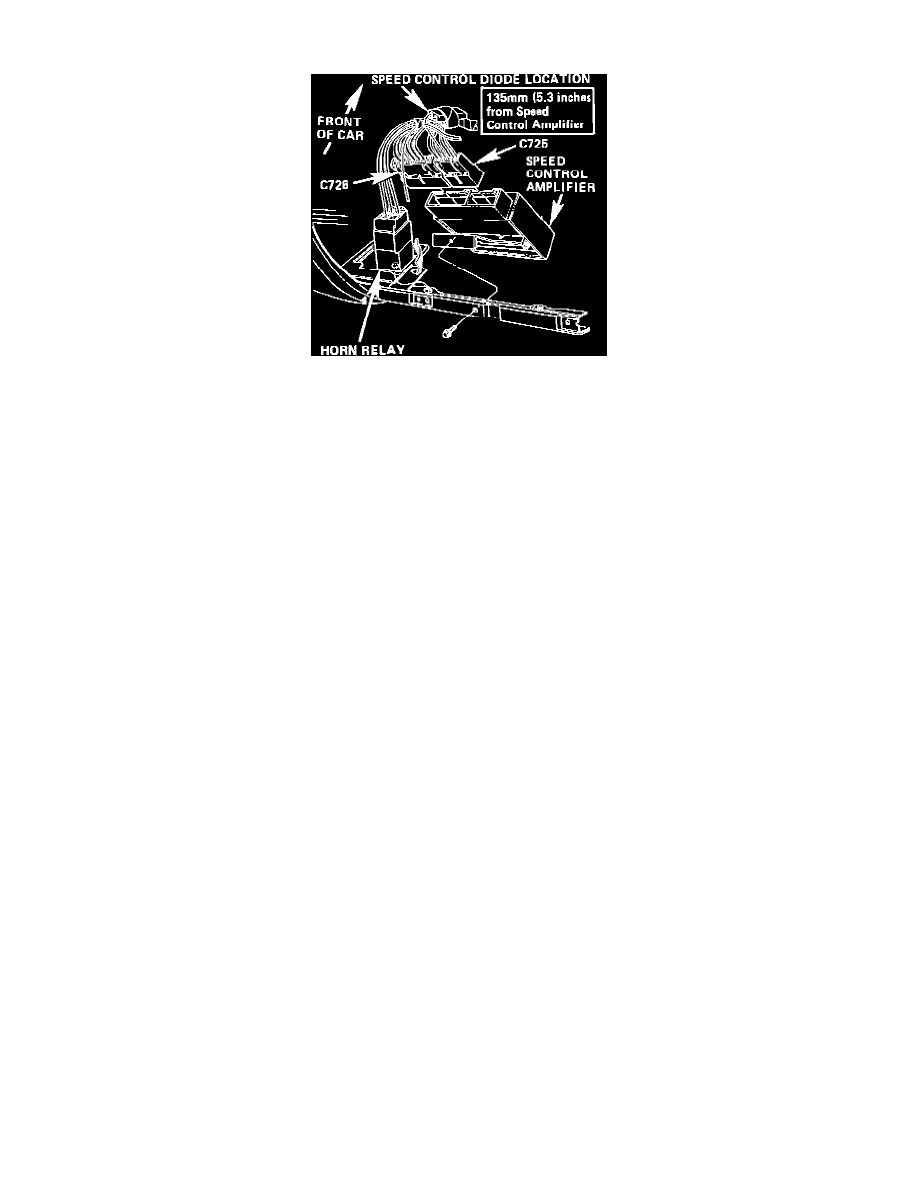

Cruise Control Module: Locations

Horn Relay And Speed Control Amplifier

 Behind LH Side Of I/P, Next To Fuse Panel
