Tempo FWD L4-140 2.3L HSO (VIN S) (1989)

Page 24
background image

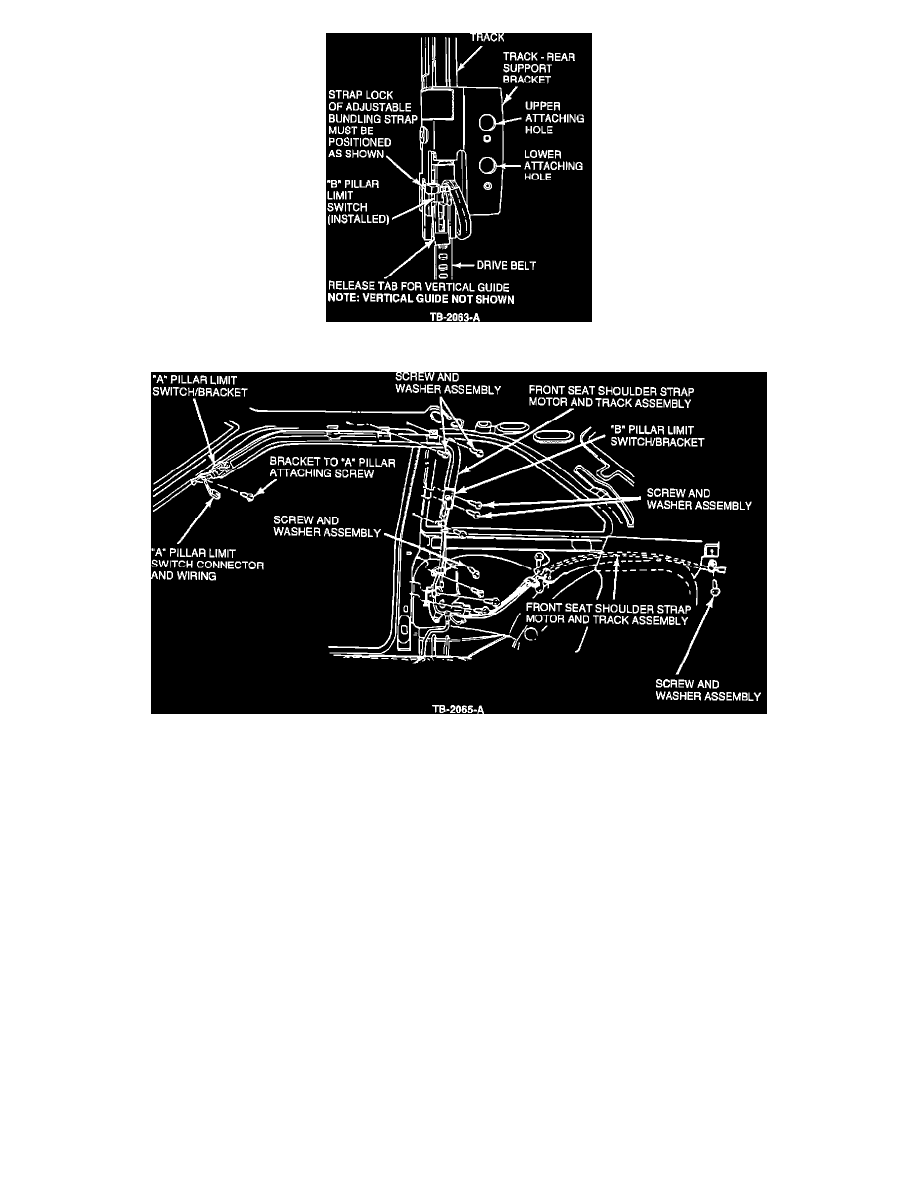

Figure 16

Figure 18

7.

Insert the drive belt through the vertical guide and connect the guide to the "B" pillar rear support bracket assembly, Figures 16 & 18.
