Tempo FWD L4-140 2.3L HSO (VIN S) (1989)

Page 28
background image

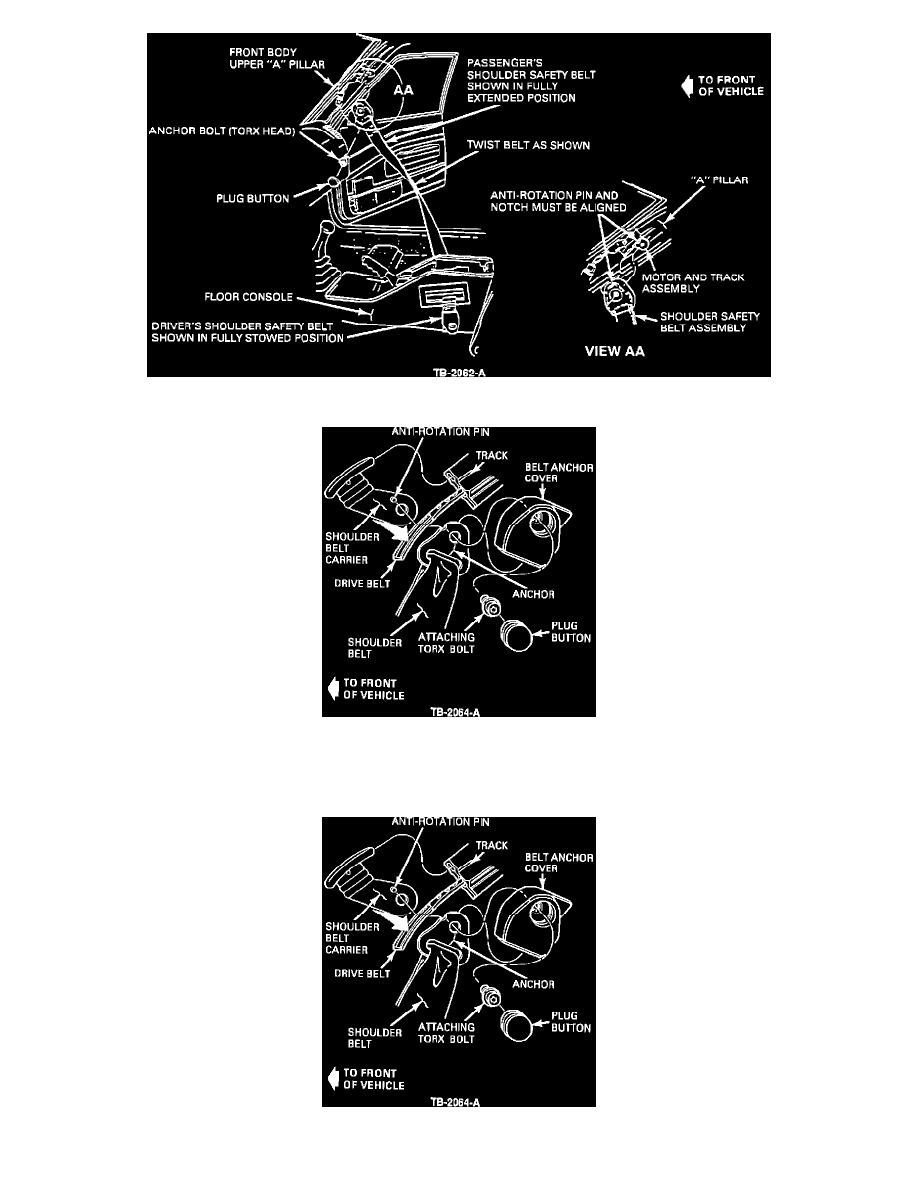

Figure 15

Figure 17

c. Install the shoulder strap to the track assembly by locating the anti-rotation pin in the strap carrier. Align it with the notch in the strap anchor,

Figures 15 & 17.

Figure 17
