Transit Connect L4-2.0L (2010)
Hood Latch: Service and Repair

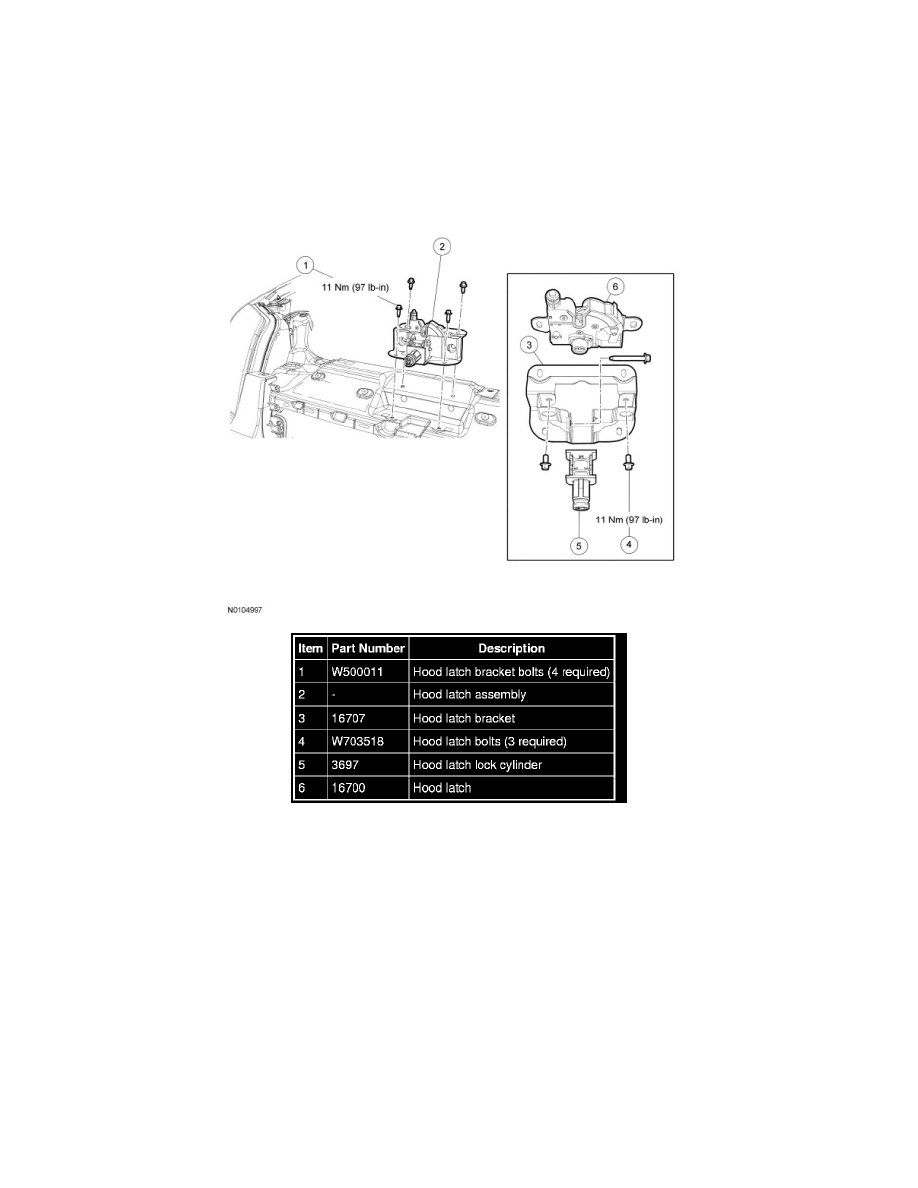

Hood Latch
NOTE: Radiator grille shown removed for clarity.
Removal and Installation
1. Remove the 4 upper radiator grille screws.
2. Gently pull up on the upper radiator grille to gain access to the hood latch bracket bolts.
3. Remove the 4 hood latch bracket bolts and remove the hood latch assembly.
-
To install, tighten to 11 Nm (97 lb-in).
4. NOTE: Mark the position of the hood latch prior to removing the hood latch bolts.
Remove the 3 hood latch bolts.
-
To install, tighten to 11 Nm (97 lb-in).
5. Remove the hood latch.
-
Slide the hood latch lock cylinder off the hood latch.
6. To install, reverse the removal procedure.
