Transit Connect L4-2.0L (2010)
Brake Pedal Assy: Service and Repair

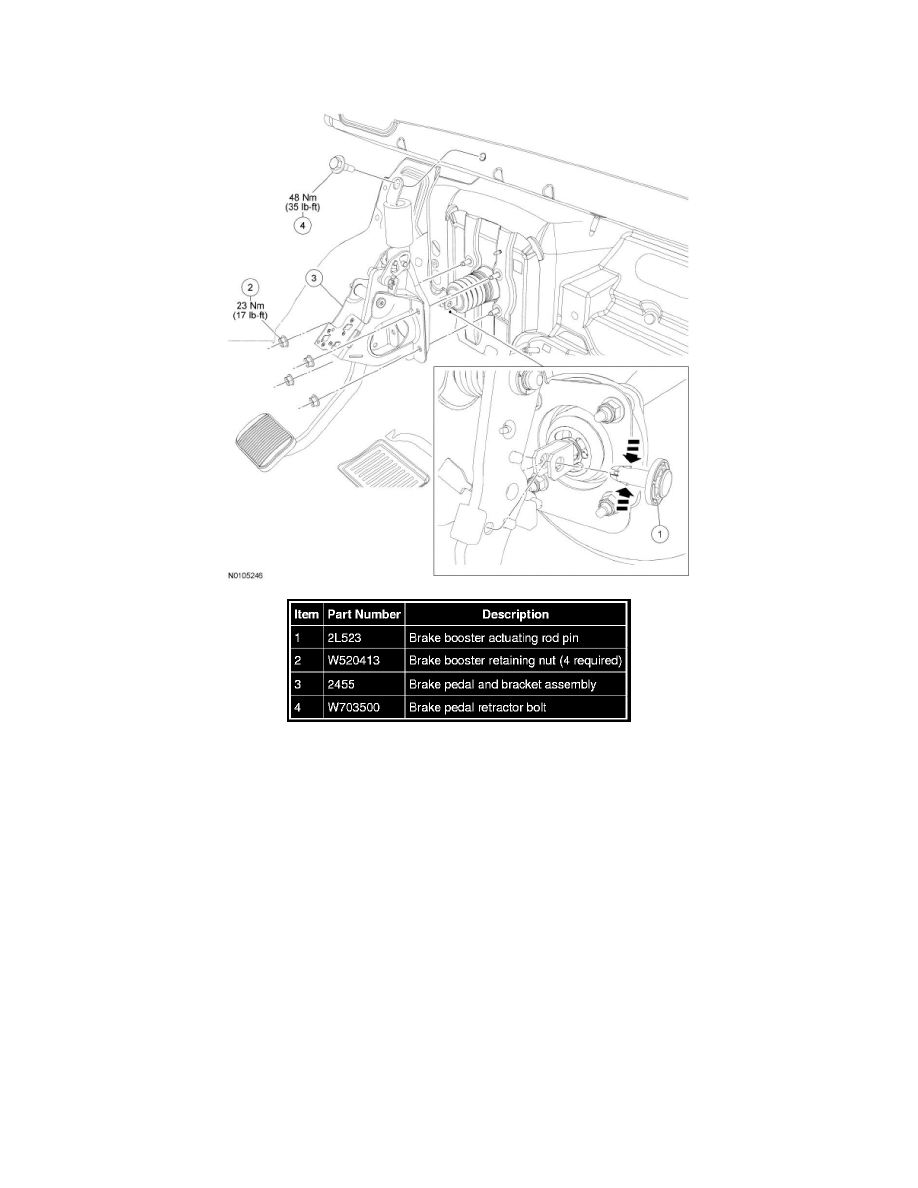

Brake Pedal and Bracket
Removal and Installation
1. Remove the lower steering column cover. For additional information, refer to Instrument Panel - Exploded View in Instrument Cluster / Carrier
&/or Interior Moulding / Trim.
2. NOTICE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with
the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to
remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.
Remove the stoplamp switch.
3. Remove the brake booster actuating rod from the brake pedal in the following sequence.
1. Disengage the tabs.
2. Remove and discard the brake booster actuating rod pin.
4. Remove the brake pedal retractor bolt.
-
To install, tighten to 48 Nm (35 lb-ft).
5. Remove the 4 brake booster nuts.
-
To install, tighten to 23 Nm (17 lb-ft).
6. Remove the brake pedal bracket.
