Transit Connect L4-2.0L (2010)
Brake Lamp: Initial Inspection and Diagnostic Overview

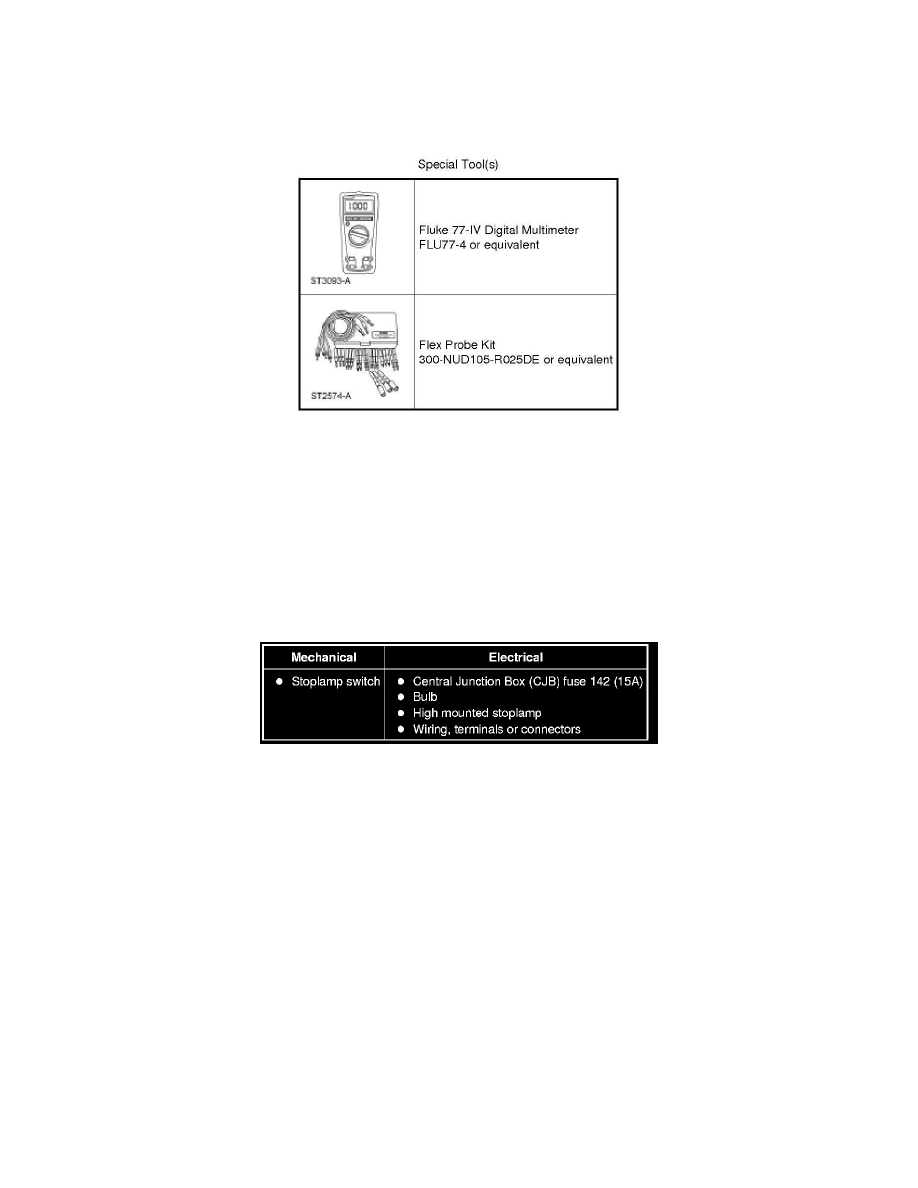

Special Tool(s) Used With Diagnostics
Stoplamps
Inspection and Verification
Stoplamps
Inspection and Verification
1. Verify the customer concern.
2. Visually inspect for obvious signs of mechanical or electrical damage.
Visual Inspection Chart
3. If the concern is not visually evident, verify the symptom. GO to Symptom Chart. See: Symptom Related Diagnostic Procedures
Principles Of Operation
Stoplamps
Principles of Operation
When the brake pedal is applied with the ignition ON, the stoplamp switch routes voltage to all the stoplamps and the PCM.
