Transit Connect L4-2.0L (2010)
Shift Cable: Service and Repair

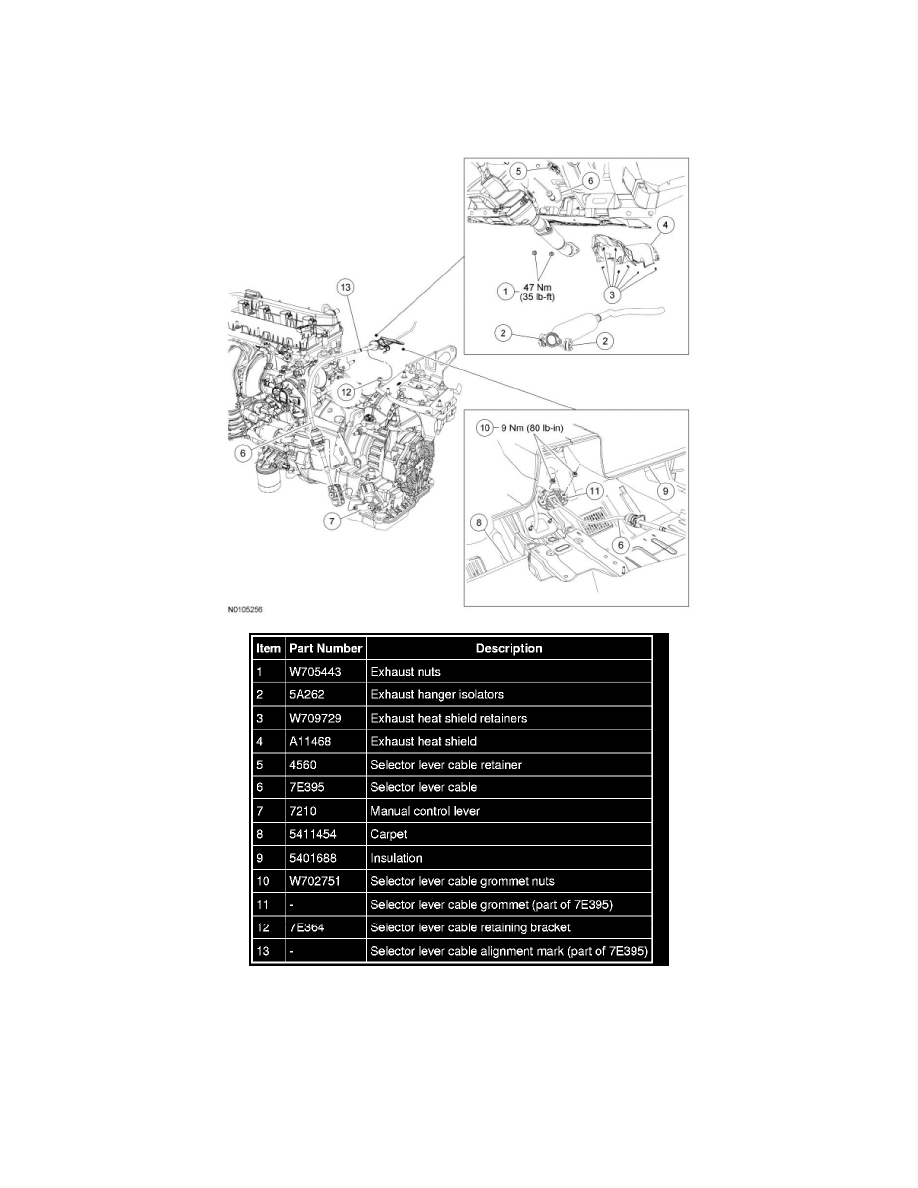

Selector Lever Cable
Selector Lever Cable
Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.
2. Remove the battery and battery tray. For additional information, refer to Battery.
3. Remove the Air Cleaner (ACL) and outlet pipe assembly. For additional information, refer to Fuel Delivery and Air Induction.
4. NOTICE: Excessive bending of the flexible exhaust pipe may cause damage resulting in failure. Support the flexible exhaust pipe with a
