Transit Connect L4-2.0L (2010)

Page 1

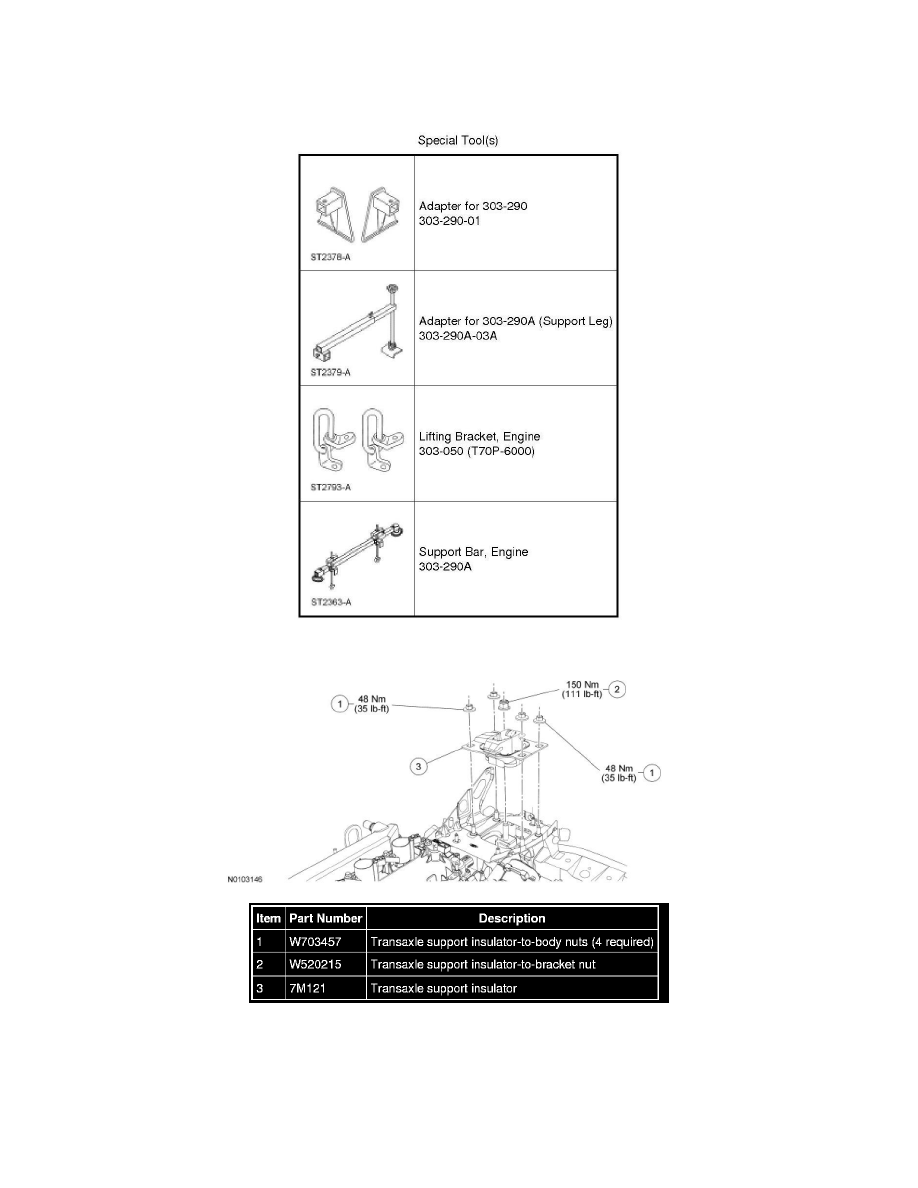

background image

Transmission Mount: Service and Repair
Transaxle Support Insulator

Transaxle Support Insulator

Transaxle Support Insulator

Removal

1. Remove the battery and battery tray. For additional information, refer to Battery.

2. Install the Engine Support Bar, Engine Lifting Bracket and Adapters and support the engine.
