Transit Connect L4-2.0L (2010)
Wiper Arm: Service and Repair
Wiper Pivot Arm - Front
Wiper Pivot Arm - Front
Removal and Installation
1. Remove the wiper pivot arm nut cover.
2. NOTE: After the wiper pivot arm nut is removed, a suitable 2 jaw puller may be necessary to remove the wiper pivot arm.
Remove the nut and the wiper pivot arm.
-
To install, tighten to 23 Nm (17 lb-ft).
3. NOTE: Make sure there is no mechanical binding in the linkage preventing the wiper arms from returning to the fully parked position.
To install, reverse the removal procedure.
-

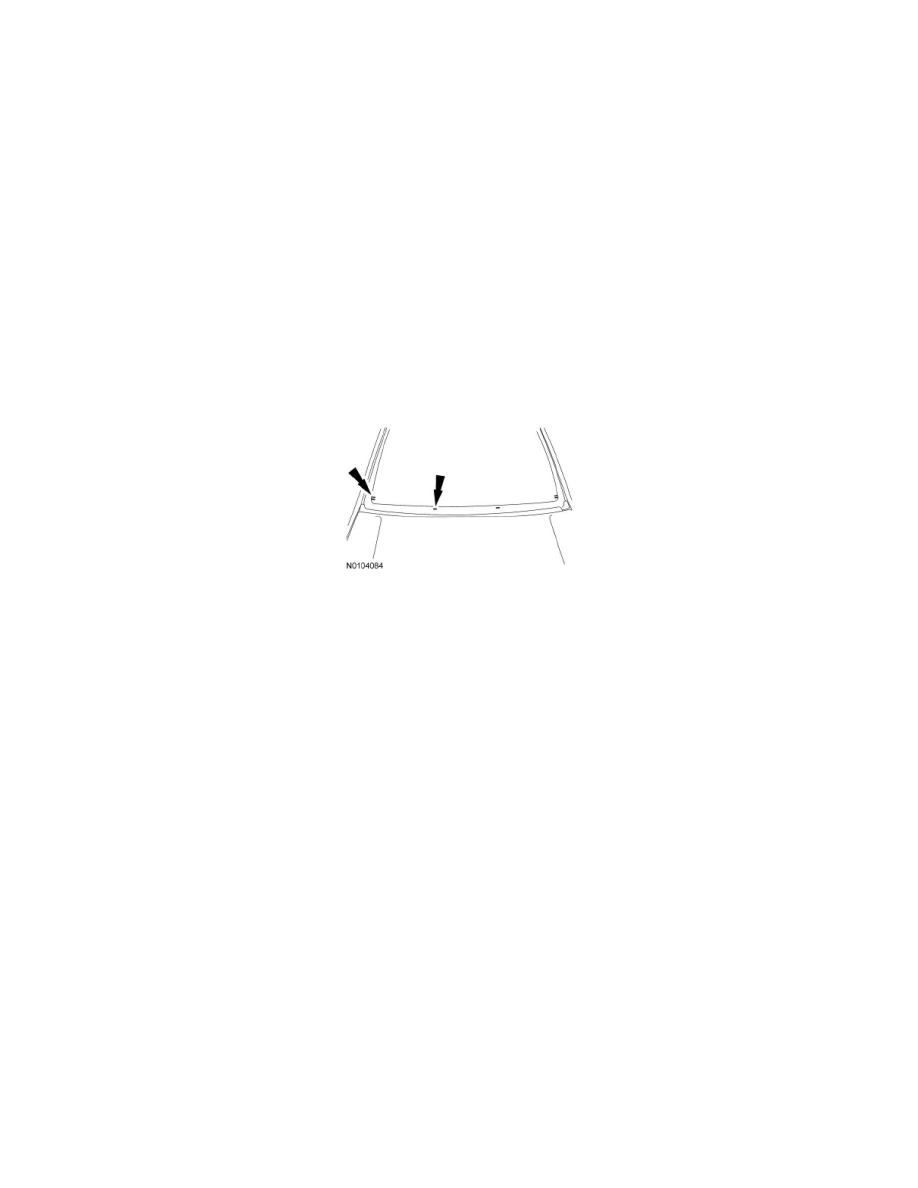

Verify that the RH windshield wiper blade is between the 2 alignment marks and the LH windshield wiper blade is slightly above the alignment
mark on the windshield.
